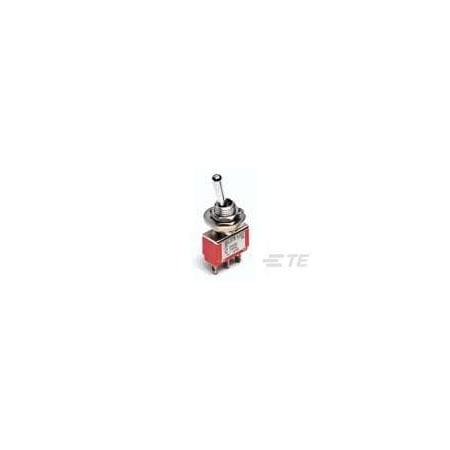

TE Connectivity 4-1825139-2

mpn4-1825139-2
brandname: TE Connectivity / AMP Brand
manufacturername: TE Connectivity / AMP Brand

TE Connectivity Part Number 4-1825139-2

Brand: TE Connectivity
PartNumber: 4-1825139-2
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Actuator Finish	Nickel
Actuator Length	10.41mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round, Bat
Alternate Mfr Part Numb.	4-1825139-2
Alternate Part No.	506-A213SYZQ04
Base Product Number	1825139
Brand	TE Connectivity / Alcos.
Bushing Length (in)	0.35
Bushing Style	Threaded
Bushing Thread	1/4-40
Bushing Thread Size	14614
Category	Switches
Circuit	SP3T
Configuration (Pole-Thr.	Double Pole - Three Thr.
Contact Base Material	Copper
Contact Current Rating .	5
Contact Form	DPDT
Contact Plating	Silver
Contact Resistance (m?)	10
Current Rating (Amps)	5A (AC/DC)
Description	SWITCH TOGGLE SP3T 5A 1.
Detailed Description	Toggle Switch SP3T Pane.
Dielectric Strength (VA.	1000
Digi-Key Part Number	450-1912-ND
Electrical Life	6,000 Cycles
Features	Jumper needed to achiev.
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (N.	-
Ingress Protection	-
Insulation Resistance (.	1000
Manufacturer	TE Connectivity, TE Con.
Manufacturer Part No.	A213SYZQ04
Manufacturer Product Nu.	4-1825139-2
Manufacturer Standard L.	25 Weeks
Mfr	TE Connectivity ALCOSWI.
Mounting Type	Panel Mount, Panel
Operating Function	On On (On)
Operating Temperature	-30?C ~ 85?C
Operation	ON-ON-(ON)
Package	Bulk
Package Quantity	1
Panel Cutout Dimensions	Circular - 6.35mm Dia
Part # Aliases	4-1825139-2
Process Sealed	No
Product Category	Toggle Switches
Product Status	Active
Product Type	Switch
Seal Type	Terminal Seal (Insert M.
Sealed	Yes
Series	A Series, Gemini A
Switch Function	On-On-Mom
Switch Type	Toggle
Termination	Solder Lugs
Termination Style	Solder Lug
Termination Type	Vertical, Wire Lugs
Toggle Length	10.4 mm [ .41 in ]
Toggle Style	Baton Standard
Tradename	GEMINI
Type	Toggle
UL Flammability Rating	UL 94V-0
Voltage Rating	125 VAC, 28 VDC
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Preferred Tier
Digi-Key	1202393	5.58	1	388	TE Connectivity ALCOSWITCH Switches	5.58 @ 10
Waldom	TE CONNECTIVITY AMP BRAND 4-1825139-2	5.62	10	235	TE CONNECTIVITY/AMP BRAND	5.62 @ 10
Onlinecomponents.com	4-1825139-2	6.17	1	100	TE Connectivity / AMP Brand	6.17 @ 10
Newark	75AJ0173	6.32	1	496	ALCOSWITCH - TE CONNECTIVITY	6.32 @ 10
RS Delivers	710-9889P	8.616	1	10	TE Connectivity	8.616 @ 10
us.rs-online.com	70156158	10.62	1	497	TE Connectivity	10.62 @ 10
swatee.com	A213SYZQ04	17.19	1	43	TE Connectivity	17.19 @ 10
Zoro	G105934047	67.9	1	10	Te Connectivity	67.9 @ 10
