TE Connectivity / AMP 530761-5

B00FRBVVE6

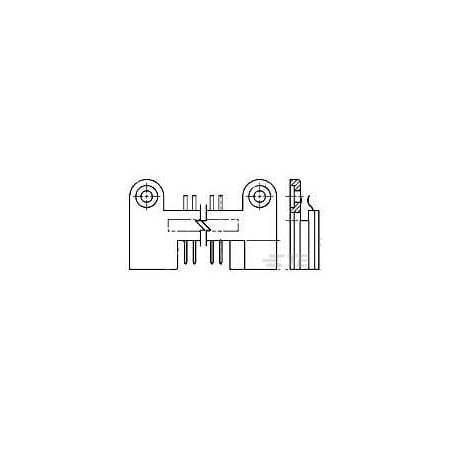

530761-5, Conn Shrouded Header (4 Sides) HDR 110 POS 2.54mm Solder ST Top Entry Edge Mount Package (1 Items)

530761-5, Conn Shrouded Header (4 Sides) HDR 110 POS 2.54mm Solder ST Top Entry Edge Mount Package (1 Items)zoom

Attributes

Key Value
Applications-
ColorBlue
Connection MaterialBrass
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - Post-
Contact Finish Thicknes.50.0?in (1.27?m)
Contact Finish Thicknes.-
Contact Length - Mating0.181" (4.60mm)
Contact Length - Post-
Contact MaterialBrass
Contact Plating Thickne.50 ?in
Contact ShapeSquare
Contact TypeMale Pin, Pin
Current Rating (Amps)-
Fastening TypePush-Pull
FeaturesCard Extender, Mounting.
Hole Center to Center2.54 mm
Ingress Protection-
Insulation ColorBlue
Insulation Height-
Insulation MaterialDiallyl Phthalate (DAP)
ItemPCB Mount Header
Mated Stacking Heights-
MaterialDiallyl Phthalate
Material Flammability R.-
MfrTE Connectivity Aerospa.
Mounting TypeBoard Edge, Straddle Mo.
NotificationQPL or Military Specs a.
Number of Contacts110
Number of Positions110
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
Package Quantity1
Part StatusActive
Pitch - Mating0.100" (2.54mm)
Row Spacing - Mating0.100" (2.54mm)
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
Terminal FinishTin-Lead Plated
Terminal TypeThrough Hole
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com530761-5260.411TE Connectivity / AMP Brand260.4 @ 1
WaldomTE CONNECTIVITY AMP BRAND 530761-5274.7911TE CONNECTIVITY/AMP BRAND274.79 @ 1
Digi-Key530761-5-ND492.49990In StockTE Connectivity Aerospace, Defense and Marine492.499 @ 90
thumbzoomZoroG600939424528.991In StockTe Connectivity528.99 @ 1
Newark36AC5905640.6111AMP - TE CONNECTIVITY640.61 @ 1
