mpn:
manufacturer:
MPN:
Weight:
0.04
Weight:
0.04 LB
Preferred Price:
8.32
Price:
8.32
Min Simple Price:
3.75
Absolute Min Price:
6.3
Min Price:
6.3
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
NjI5OA:::5499911-8
sku:
NjI5OA::8E:5499911-8@y0
condition:
11
seller:
Onlinecomponents.com
amzMan:
te connectivity
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Applications, Contact Material, Ingress Protection, Insulation Material, Mated Stacking Heights | - |
| Base Product Number | 5499911 |
| Category | Connectors, Interconnects |
| Connector Type | Header |
| Contact Finish - Mating | Gold or Gold-Palladium |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15.0?in (0.38?m) |
| Contact Finish Thickness - Post | 100.0?in (2.54?m) |
| Contact Length - Mating | 0.240" (6.10mm) |
| Contact Length - Post | 0.155" (3.94mm) |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Country of Origin (subject to change) | China |
| Current Rating (Amps) | 1A per Contact |

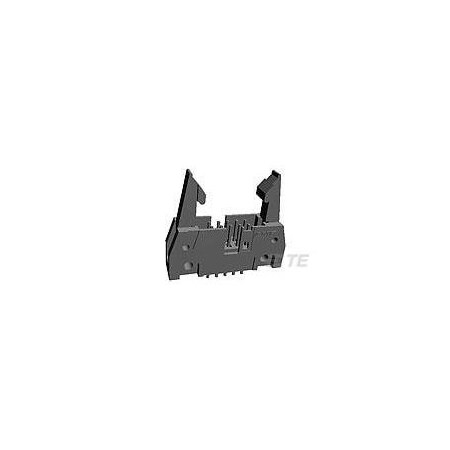

| Description | CONN HEADER VERT 34POS 2.54MM |
| Detailed Description | Connector Header Through Hole 34 position 0.100" (2.54mm) |
| Digi-Key Part Number | A113930-ND |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Features | Keying Slot, Mounting Flange |
| Insulation Color | Black |
| Insulation Height | 0.549" (13.94mm) |
| Manufacturer Product Number | 5499911-8 |
| Manufacturer Standard Lead Time | 13 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature | -65?C ~ 105?C |
| Overall Contact Length | 0.684" (17.37mm) |
| Package | Box |
| Pitch - Mating, Row Spacing - Mating | 0.100" (2.54mm) |
| Product Status | Active |
| Series | AMP-Latch |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250VAC |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Onlinecomponents.com | 5499911-8 | 3.75 | 12.75 | 1 | 136 | TE Connectivity / AMP Brand | 3.75 @ Qty: 5+ | |||
| Waldom | TE CONNECTIVITY AMP BRAND 5499911-8 | 3.82 | 34.38 | 15 | 133 | TE CONNECTIVITY/AMP BRAND | 3.82 @ Qty: 15+ | |||
 | Digi-Key | 2285226 | 5.89 | 53.01 | 15 | 133 | TE Connectivity AMP Connectors | 5.89 @ Qty: 15+ | ||
| Newark | 76AC8870 | 7.23 | 65.07 | 15 | 133 | AMP - TE CONNECTIVITY | 7.23 @ Qty: 10+ | |||
 | Zoro | G600939882 | 7.44 | 450.864 | 144 | 5 | Te Connectivity | 7.44 @ Qty: 144+ |
