TE Connectivity 540-AG10D-ES

B00GFFYGPE

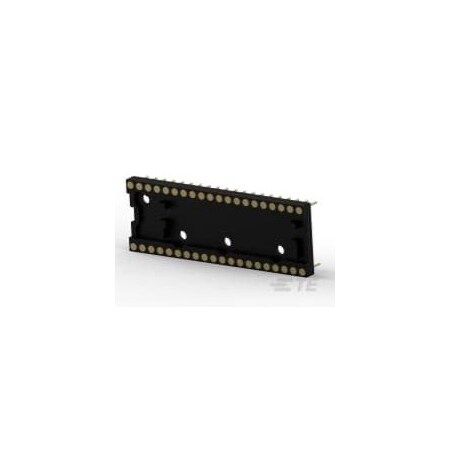

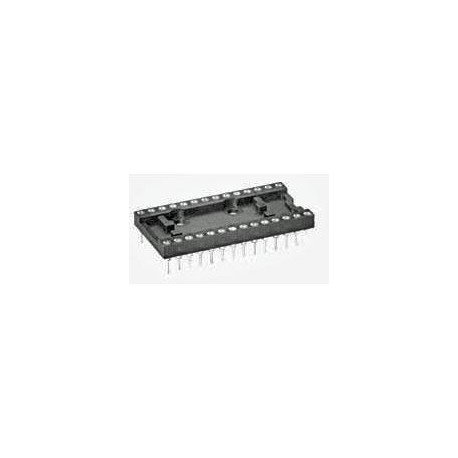

T-E Connectivity 540-AG10D-ES (1 pcs) SOCKET ASSY

T-E Connectivity 540-AG10D-ES (1 pcs) SOCKET ASSYzoom

Attributes

Key Value
Alternate Parts540-AG10D
ApplicationSignal
CategoryUncategorized
Connection MaterialBeryllium Copper
Connector Terminates ToPrinted Circuit Board
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Material - Mati.Beryllium Copper
Contact Material - PostBrass
Contact Plating Thickne.25 ?in
Contact Resistance10 mOhm
Contact TypePin
Current Rating3 A
Description540-AG10D-ES=SOCKET ASSY
Digi-Key Part Number2266-7-1437536-3-ND
FeaturesClosed Frame
Flammability RatingUL 94 V-0
Hole Center to Center2.54 mm
ItemSocket
Lead Free Status / RoHS.RoHS Compliant
Length2 in
ManufacturerTE Connectivity AMP Con.
Manufacturer Part Number540-AG10D-ES
Manufacturer Product Nu.7-1437536-3
Manufacturer Standard L.9 Weeks
MaterialPolyester
Max. Temp.125?C
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts40
Number of Positions or .40 (2 x 20)
Number of Rows2
Operating Temperature-55
PackageTube
Package Quantity1
PackagingTube
Pitch - Mating0.100" (2.54mm)
Pitch - Post0.100" (2.54mm)
Product StatusActive
Series500 Series, *, 500
Standard Package12
Terminal FinishGold Plated
Terminal TypeThrough Hole
TerminationSolder
Termination Post Length0.125" (3.18mm)
TypeDIP, 0.6" (15.24mm) Row.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY BUCHANAN 540-AG10D-ES4.015756TE CONNECTIVITY / BUCHANAN4.0 @ 15
iodParts540-AG10D-ES5.53950852TE Connectivity5.539 @ 50
thumbzoomDigi-Key147354326.89123883TE Connectivity AMP Connectors6.89 @ 12
HotendaH14883327.271In StockTE Connectivity AMP Connectors7.27 @ 1
us.rs-online.com703466798.1412In StockTE Connectivity8.14 @ 12
thumbzoomNewark36AC77988.4713939AMP - TE CONNECTIVITY8.47 @ 1
Onlinecomponents.com540-AG10D-ES12.516359TE Connectivity / Buchanan Brand12.5 @ 1
thumbzoomZoroG30103971385.81In StockTe Connectivity85.8 @ 1
AmazonTPB0831TQ1WS219.951In Stock1TE Connectivity / Buchanan219.95 @ 1
