TE Connectivity V23162B703B610

B014CKDFU0

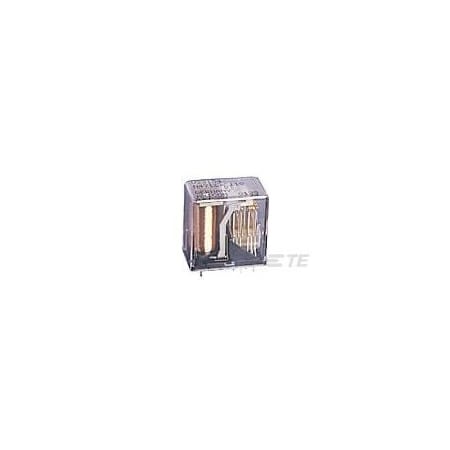

TE Connectivity / P&B Brand V23162B703B610 Signal Relays (Dry to 3 Amps)

TE Connectivity / P&B Brand V23162B703B610 Signal Relays (Dry to 3 Amps)zoom

Attributes

Key Value
Alternate Mfr Part Numb.7-1393818-4
Base Product Number1393818
Body Depth - Relay1.181 in
Body Height - Relay1.181 in
Body Width - Relay0.748 in
CategoryRelays
Coil Current6 mA
Coil Insulation-
Coil Resistance20.9 kOhms, 20900 ?
Coil TypeNon Latching, Monostabl.
Coil Voltage125VDC
Coil Volts110V AC
Contact Form4PDT (4 Form C)
Contact Form - Relay4 Form C (CO)
Contact Limiting Breaki.0.2A
Contact Limiting Contin.2A
Contact Limiting Making.0.2A
Contact Limiting Short-.0.2A
Contact MaterialGold (Au), Gold F
Contact Rating0.2A
Contact Rating (Current)200 mA
DescriptionRELAY GEN PURP 4PDT 200.
Detailed DescriptionGeneral Purpose Relay 4.
Dielectric Voltage1000 Vrms Coil and Cont.
Digi-Key Part Number7-1393818-4-ND
Electrical Connection -.Solder Terminals
FeaturesStandard Type, -
Item - RelayCradle N Relay
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.7-1393818-4
MfrTE Connectivity Potter .
Mounting TypeSocketable, Printed Cir.
Must Operate Voltage81 VDC
Must Release Voltage-
Number of Poles4
Operate Time7.5 ms
Operating Temp. Range-40 to 70 ?C
Operating Temperature-40?C ~ 70?C
PackageBulk
Power Consumption - Rel.70 mW
Product StatusActive
Protection CategoryRTV
Relay TypeGeneral Purpose
Release Time3 ms
Seal RatingSealed - Hermetically
SeriesV23162, AXICOM
Switching Voltage36 VAC [ 36 VDC ], 30VA.
Terminal TypePlug-In, Solder
Termination StylePlug In

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com7-1393818-4464.98115TE Connectivity / AMP Brand464.98 @ 1
thumbzoomDigi-Key2398456625.77810In StockTE Connectivity Potter & Brumfield Relays625.778 @ 10
thumbzoomZoroG201034078643.991In StockTe Connectivity643.99 @ 1
Newark36AC7776650.381In StockAMP - TE CONNECTIVITY650.38 @ 1
us.rs-online.com72129742694.0110In StockTE Connectivity694.01 @ 10
