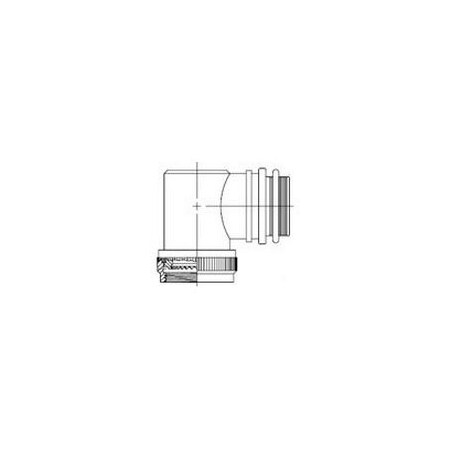

TE Raychem TXR40AB90-2016AI

B07NQRW6KQ

TE Raychem Connector

TE Raychem Connectorzoom

Attributes

Key Value
Adapter Angle90
Adapter Entry Size16
Adapter Plating MaterialCadmium (AMS-QQ-P-416, .
Backshell MaterialAluminum
Base Product NumberTXR40AB90
Cable Diameter Range12.7 ? 20.3 mm[.5 ? .8 .
Cable Entry Diameter.2 ? 25.4 mm[.01 ? 1 in]
Cable Exit90?
Cable Opening-
CategoryConnectors, Interconnec.
ColorOlive Drab
Connector Detail Specif.D38999/20, D38999/24, D.
Connector General Speci.MIL-DTL-38999 Series II.
Connector Shell Size21,G
DescriptionCONN BACKSH ADPT SZ21 G.
Detailed DescriptionOlive Drab Connector Ba.
Diameter - Outside1.457" (37.00mm)
Digi-Key Part NumberTXR40AB90-2016AI-ND
FeaturesTinel Lock
For Use With/Related Pr.MIL-DTL-38999 Series II.
Includes4 pcs - 1 Backshell, 1 .
Ingress ProtectionEnvironment Resistant
ManufacturerTE Connectivity Raychem.
Manufacturer Product Nu.TXR40AB90-2016AI
Manufacturer Standard L.25 Weeks
MaterialAluminum Alloy
Material Flammability R.-
MfrTE Connectivity Raychem.
Operating Temperature R.-65 ? 175 ?C[-85 ? 347 .
Overbraid TerminationTinel-Lock Ring
PackageBulk
Package Quantity1
PlatingCadmium
Pluggable I/O Accessory.Tinel-Lock Adapter
Product StatusActive
Salt Spray Resistance500 Hr
SeriesTXR, Raychem TXR
Shell Size - Insert21, G
ShieldingShielded
TE Adapter Code40
Termination Device Incl.TR16AI
Termination Device TypeSide-Entry Tinel-Lock R.
Thread SizeM31x1
TypeBackshell, Heat Shrink .

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comTXR40AB90-2016AI129.9713TE Connectivity / Raychem Brand129.97 @ 3
Allied ElectronicsE5197342136.6353TE Connectivity136.63 @ 5
thumbzoomDigi-Key2395122161.3044253TE Connectivity Raychem Cable Protection161.3044 @ 25
WaldomTE CONNECTIVITY RAYCHEM TXR40AB90-2016AI167.95253TE CONNECTIVITY / RAYCHEM167.95 @ 25
thumbzoomZoroG700961806209.9913Raychem209.99 @ 3
Newark35AC4806232.0813RAYCHEM - TE CONNECTIVITY232.08 @ 3
