TE Connectivity KUP-5A55-240

B00FRBXZ68

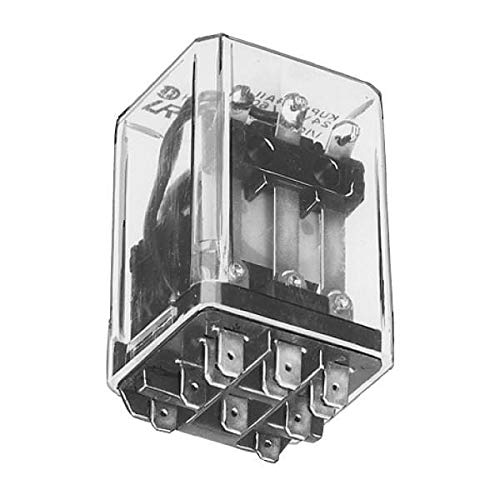

KUP-5A55-240, Electromechanical Relay 240VAC 9.11KOhm 10A SPDT(73.7x38.89x55.55) mm Bracket Industrial Relay

KUP-5A55-240, Electromechanical Relay 240VAC 9.11KOhm 10A SPDT(73.7x38.89x55.55) mm Bracket Industrial Relayzoom

Attributes

Key Value
Coil Magnetic SystemMonostable, AC
Coil Power Rating AC2.1
Coil Power Rating Class2 ? 3
Coil Resistance9110
Coil Special FeaturesUL Coil Insulation Clas.
Coil Voltage Rating240
Contact Arrangement1 Form C (CO)
Contact Current Class5 ? 10, 16
Contact Current Rating .10
Contact Limiting Breaki.10
Contact MaterialAgCdO
Contact Number of Poles1
Contact Switching Load .300mA @ 12V
Contact Voltage Rating240
Environmental Category .RTI
Operating Temperature R.-45 ? 55
Packaging MethodPackage
Power Relay TypeIndustrial Panel Plug-In
Product Height35.7?mm?[?1.405?in?]
Product Length48.4?mm?[?1.906?in?]
Product Width38.9?mm?[?1.531?in?]
Relay Mounting TypeBracket, Panel Mount
Terminal TypeQuick Connect, Solder
