TE CONNECTIVITY / ALCOSWITCH A101J61ZQ0004

B00MEK4QAE

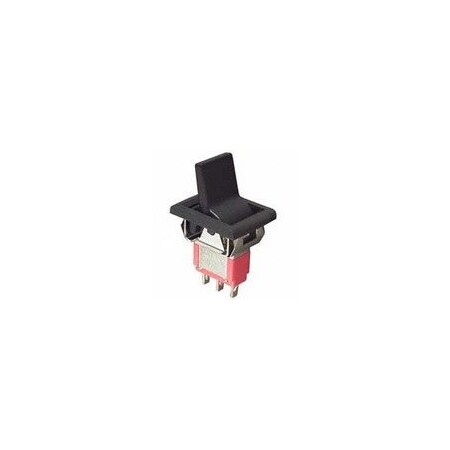

Rocker Switches SGL POLE, ROCKER

Rocker Switches SGL POLE, ROCKERzoom

Attributes

Key Value
ActuatorRocker
Actuator MarkingNo Marking, -
Actuator TypeBlack, Paddle
Alternate Mfr Part Numb.3-1571986-6
Alternate Part No.506-A101J61ZQ0004
Base Product Number3-1571986
BrandTE Connectivity / Alcos.
CategorySwitches
CircuitOn-On, SPDT
ColorBlack
Color - Actuator/CapNo Marking, Black
Contact FormSPDT
Contact PlatingSilver
Contact Rating5 A at 125 V
Country of Origin (subj.China
Current Rating2 A
Current Rating (Amps)5A (AC/DC), Paddle
DescriptionSWITCH ROCKER SPDT 5A 1.
Detailed DescriptionRocker Switch SPDT 5A (.
Digi-Key Part Number450-1501-ND
Electrical Life120 V, 6,000 Cycles
FeaturesRectangular - 15.24mm x.
Housing MaterialThermoset
Illumination Type, Color-
Illumination Voltage (N.Solder Lug, -
Ingress ProtectionEpoxy Sealed Terminals,.
ManufacturerTE Connectivity, TE Con.
Manufacturer Part No.A101J61ZQ0004
Manufacturer Product Nu.3-1571986-6
Manufacturer Standard L.25 Weeks
Mechanical Life6,000 Cycles, -
MfrTE Connectivity ALCOSWI.
Mounting StylePanel
Mounting TypeSPDT, Panel Mount, Snap.
Operating Temperature-30?C ~ 85?C, -
Operating Temperature R.- 20 C to + 85 C
PackageActive, Bulk
PackagingBulk
Panel Cutout DimensionsRectangular - 15.24mm x.
Part # Aliases3-1571986-6
Part StatusPanel Mount, Snap-In
Product CategoryRocker Switches
Product StatusActive
SeriesBulk, A, Gemini A
Switch Function5A (AC/DC), ON - ON, On.
Terminal SealEpoxy
Termination StyleSolder Lug, Quick Conne.
TradenameGEMINI
Voltage Rating - AC120 V, 28 V
Voltage Rating - DC28 V
Voltage Rating AC250 V
Voltage Rating DC30 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 3-1571986-63.2520271TE CONNECTIVITY/AMP BRAND3.25 @ 20
Onlinecomponents.comA101J61ZQ00043.731516TE Connectivity / Alcoswitch Brand3.73 @ 1
us.rs-online.com720346595.17500In StockTE Connectivity5.17 @ 500
Newark36AC30145.26250271AMP - TE CONNECTIVITY5.26 @ 250
thumbzoomZoroG8009655756.08250In StockTe Connectivity6.08 @ 250
thumbzoomswatee.comA101J61ZQ00046.92172TE Connectivity6.92 @ 1
RS Delivers710-93197.068175TE Connectivity7.068 @ 1
thumbzoomDigi-Key10217957.6561161TE Connectivity ALCOSWITCH Switches7.656 @ 1
