TE Connectivity 1-1761685-5

B00KSN3MJU

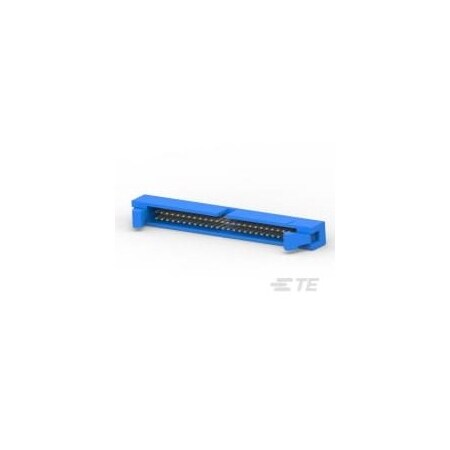

TE Connectivity Part Number 1-1761685-5

TE Connectivity Part Number 1-1761685-5zoom

Attributes

Key Value
Applications-
Base Product Number1761685
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.102" (2.60mm)
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating (Amps)1A per Contact
DescriptionCONN HEADER VERT 50POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA114820-ND
Fastening TypeLatch Lock/Eject Hooks,.
FeaturesKeying Slot
Ingress Protection-
Insulation ColorBlue
Insulation Height0.350" (8.89mm)
Insulation MaterialPolybutylene Terephthal.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1761685-5
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions50
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Overall Contact Length-
PackageTray
Pitch - Mating0.100" (2.54mm)
Product StatusActive
Row Spacing - Mating0.100" (2.54mm)
SeriesAMP-Latch
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating250VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1-1761685-510.09101735TE CONNECTIVITY/AMP BRAND10.09 @ 10
Verical1-1761685-510.3741000TE Connectivity10.37 @ 4
Newark48M435811.552000In StockAMP - TE CONNECTIVITY11.55 @ 2000
thumbzoomZoroG60093733813.362000In StockTe Connectivity13.36 @ 2000
us.rs-online.com7201915616.032000In StockTE Connectivity16.03 @ 2000
thumbzoomDigi-Key226215217.952101745TE Connectivity AMP Connectors17.952 @ 10
AmazonTPB07KWH7MQ527.241In Stock2TE Connectivity / AMP Brand27.24 @ 1
AmazonUNKB07KWH7MQ527.241In StockTE Connectivity / AMP Brand27.24 @ 1
Onlinecomponents.com1-1761685-528.511100TE Connectivity / AMP Brand28.51 @ 1
