TE Connectivity 1-1761692-3

B00KSM83YU

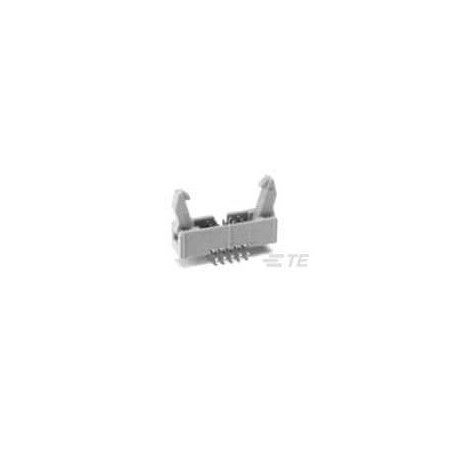

TE Connectivity Part Number 1-1761692-3

TE Connectivity Part Number 1-1761692-3zoom

Attributes

Key Value
ApplicationSignal
Applications-
Base Product Number1761692
CategoryConnectors, Interconnec.
ColorBlue
Connection MaterialPhosphor Bronze
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.165" (4.19mm)
Contact MaterialPhosphor Bronze
Contact Plating Thickne.30 ?in
Contact ShapeSquare
Contact TypeMale Pin, Pin
Current Rating1 A
Current Rating (Amps)-
DescriptionCONN HEADER R/A 40POS 2.
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number1-1761692-3-ND
Fastening TypeLatch Lock/Eject Hooks,.
FeaturesWith Daisy Chain and Ej.
Flammability RatingUL 94 V-0
For Use WithAMP-Latch Receptacle
Height8.89 mm
Hole Center to Center2.54 mm
Ingress Protection-
Insulation ColorBlue
Insulation Height0.350" (8.89mm)
Insulation MaterialPolybutylene Terephthal.
ItemConnector
Length2-3/4 in
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-1761692-3
Mated Stacking Heights-
MaterialPBT
Material Flammability R.UL94 V-0
Max. Temp.105?C
Max. Voltage250V AC
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Contacts40
Number of Positions40
Number of Positions Loa.All
Number of Rows2
Operating Temperature-
Overall Contact Length-
PackageTray
Package Quantity1
Pitch - Mating0.100" (2.54mm)
Product StatusObsolete
Row Spacing - Mating0.100" (2.54mm)
SeriesAMP-Latch
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
Terminal FinishTin Plated
Terminal TypeThrough Hole; Insulatio.
TerminationSolder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1-1761692-310.750120TE CONNECTIVITY/AMP BRAND10.7 @ 50
Newark87K104212.712000In StockAMP - TE CONNECTIVITY12.71 @ 2000
Future Electronics900865313.922000In StockTE Connectivity13.92 @ 2000
us.rs-online.com7201908017.642000In StockTE Connectivity17.64 @ 2000
thumbzoomDigi-Key226215717.98850370TE Connectivity AMP Connectors17.988 @ 50
thumbzoomZoroG700937313719.51In StockTe Connectivity719.5 @ 1
