mpn:
manufacturer:
MPN:
Description:

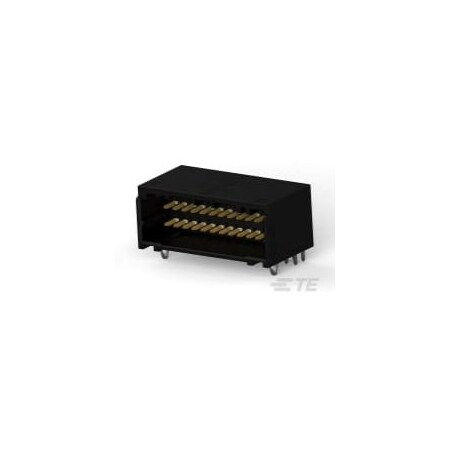

TE Connectivity AMP Connectors 1-1939638-3
Preferred Price:
8.61
Price:
8.61
Min Simple Price:
3.91
Absolute Min Price:
6.51
Min Price:
6.51
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
DA1MjQ:::1-1939638-3
sku:
DA1MjQ::6S:1-1939638-3@y0
condition:
11
seller:
Waldom
amzMan:
te raychem
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Applications | General Purpose, Industrial |
| Base Product Number | 1939638 |
| Category | Connectors, Interconnects |
| Connector Shape | Square shape |
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 15.0?in (0.38?m) |
| Contact Finish Thickness - Post | 78.7?in (2.00?m) |
| Contact Length - Mating, Ingress Protection, Mated Stacking Heights, Overall Contact Length | - |
| Contact Length - Post | 0.122" (3.10mm) |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Country of Origin (subject to change) | China |
| Current Rating (Amps) | 3A |
| Description | CONN HEADER R/A 26POS 2MM |
| Detailed Description | Connector Header Through Hole, Right Angle 26 position 0.079" (2.00mm) |
| Digi-Key Part Number | A126046-ND |
| Fastening Type | Detent Lock |
| Features | Board Lock |
| Insulation Color | Black |
| Insulation Height | 0.465" (11.80mm) |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| IP Rating | None |
| Manufacturer Product Number | 1-1939638-3 |
| Manufacturer Standard Lead Time | 40 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature | -55?C ~ 105?C |
| Package | Tube |
| Pitch - Mating | 0.079" (2.00mm) |
| Product Status | Active |
| Row Spacing - Mating | 0.130" (3.30mm) |
| Series | Dynamic D-1100 |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board or Cable |
| Termination | Solder |
| Voltage Rating | 125V |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Waldom | TE CONNECTIVITY AMP BRAND 1-1939638-3 | 3.91 | 83.674 | 16 | 1440 | TE CONNECTIVITY/AMP BRAND | 3.91 @ Qty: 25+ | |||
 | Misumi USA | 1-1939638-3 | 4.58 | 70.532 | 1 | 25 | TE Connectivity | 4.58 @ Qty: 25+ | ||
 | Zoro | G400937606 | 5.51 | 787.93 | 320 | 25 | Te Connectivity | 5.51 @ Qty: 320+ | ||
 | Digi-Key | 5399989 | 7.65264 | 117.850656 | 1 | 5256 | TE Connectivity AMP Connectors | 7.65264 @ Qty: 25+ | ||
| Newark | 96X8179 | 11.21 | 3037.91 | 640 | 25 | TE CONNECTIVITY | 11.21 @ Qty: 500+ |
