mpn:
manufacturer:
MPN:
Attributes
| Key ^ | Value |
|---|---|
| Base Product Number | 1986660 |
| Block Type | PCB Mount |
| Category | Connectors, Interconnects |
| Centerline (Pitch) | 10.16?mm?[?.4?in?] |
| Circuit Application | Power & Signal |
| Clamp Material - Plating | Brass - Nickel Plated |
| Closed End, Interlock, Wire Protection | With |
| Color | Black |
| Color, Housing Color | Green |
| Connector | Printed Circuit Board |
| Connector Mounting Type | Board Mount |
| Connector Style | Header |
| Connector System | Wire-to-Board |
| Contact Base Material | Brass |
| Contact Current Rating (Max), Current Rating (Max) | 65 |
| Contact Material - Plating, Series | - |
| Contact Mating Area Plating Material | Tin |
| Contact Mount, Mounting Type | Through Hole |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Current | 65 A |

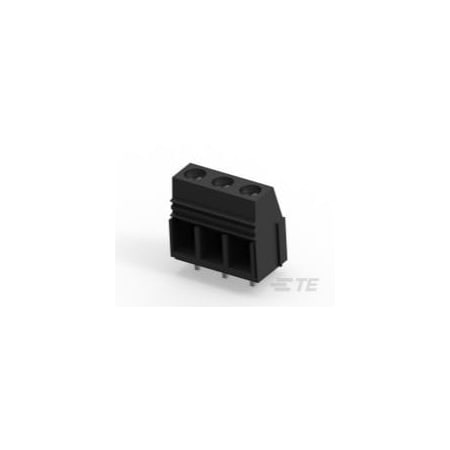

| Description | TERM BLK 3P SIDE ENT 10.16MM PCB |
| Detailed Description | 3 Position Wire to Board Terminal Block Horizontal with Board 0.400" (10.16mm) Through Hole |
| Digi-Key Part Number | A116791-ND |
| Features | Interlocking (Side) |
| Housing Material | PA 66, Polyamide (PA66), Nylon 6/6 |
| Locating Posts, Screw Flange, Stacked Levels, Threaded Flange | Without |
| Manufacturer Product Number | 1-1986660-3 |
| Manufacturer Standard Lead Time | 20 Weeks |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Mating Orientation | Horizontal with Board |
| Mounting Angle | Vertical |
| Number of Levels, Number of Rows | 1 |
| Number of Positions, Positions Per Level | 3 |
| Operating Temperature | -40?C ~ 105?C |
| Operating Temperature Range | -40 ? 105??C?[?-40 ? 221??F?] |
| Package | Bulk |
| Packaging Method | Box & Carton |
| Packaging Quantity | 175 |
| PCB Tail Length | 4.5?mm?[?.177?in?] |
| Pitch | 0.400" (10.16mm) |
| Product Status | Active |
| Profile | Low |
| Screw Material | Steel |
| Screw Material - Plating | Steel - Zinc Plated |
| Screw Plating Material | Zinc |
| Screw Size, Screw Thread | M4 |
| Screwless Terminal Block | No |
| Stacking Configuration | Side Stackable |
| Torque - Screw | 2.26 Nm (20 Lb-In) |
| Voltage | 300 V, 300 |
| Wire Entry Angle | Side |
| Wire Gauge | 6-26 AWG |
| Wire Size | 26 ? 6 |
| Wire Termination | Screw |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Waldom | TE CONNECTIVITY AMP BRAND 1-1986660-3 | 6.93 | 755.37 | 10 | 175 | TE CONNECTIVITY/AMP BRAND | 6.93 @ Qty: 175+ | |||
 | Digi-Key | 4730594 | 8.5609 | 902.31886 | 1 | 226 | TE Connectivity AMP Connectors | 8.5609 @ Qty: 175+ | ||
| Hotenda | H1617301 | 8.653 | 912.0262 | 1 | 308 | TE Connectivity AMP Connectors | 8.653 @ Qty: 175+ | |||
| Newark | 96X8452 | 9.04 | 2214.8 | 350 | 175 | TE CONNECTIVITY | 9.04 @ Qty: 250+ | |||
| TE Connectivity | 1-1986660-3 | 9.7476 | 1027.39704 | 1 | 349 | TE Connectivity (TE) | 9.7476 @ Qty: 175+ | |||
 | Zoro | G801037622 | 11.0 | 1925.0 | 175 | 175 | Te Connectivity | 11.0 @ Qty: 175+ |
