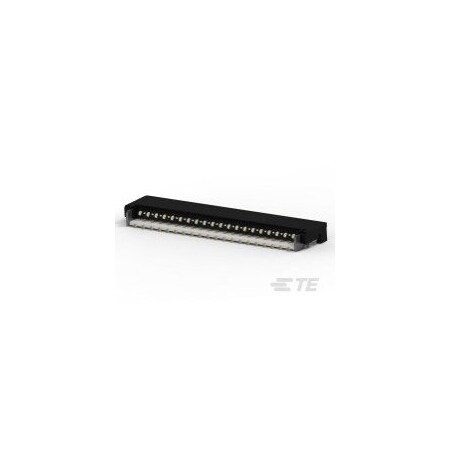

TE Connectivity 1-2013496-5

B00KSNFM8E

TE Connectivity Part Number 1-2013496-5

TE Connectivity Part Number 1-2013496-5zoom

Attributes

Key Value
Actuator ColorBlack
Actuator MaterialPolyphenylene Sulfide (.
ApplicationSignal
Base Product Number2013496
Cable End TypeTapered
CategoryConnectors, Interconnec.
ColorBlack, Beige
Connection MaterialCopper Alloy
Connector Terminates ToFlexible Printed Circui.
Connector TypeReceptacle
Connector/Contact TypeContacts, Bottom
Contact FinishGold Plated, Gold
Contact Finish Thickness-
Contact MaterialCopper Alloy
Contact Plating Thickne.0.1 ?m
Contact TypeSocket
Current Rating0.2 A
Current Rating (Amps)0.2A
DescriptionCONN FPC BOTTOM 39POS 0.
Detailed Description39 Position FPC Connect.
Digi-Key Part NumberA108790TR-ND - Tape & R.
FeaturesSolder Retention, Zero .
FFC, FCB Thickness0.20mm
Flame RetardantYes
Flammability RatingUL 94 V-0
Flat Flex TypeFPC
Height1.2 mm
Height Above Board0.047" (1.20mm)
Hole Center to Center0.3 mm
Housing ColorNatural
Housing MaterialLiquid Crystal Polymer .
ItemConnector
Length0.531 in
Locking FeatureFlip Lock
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-2013496-5
MaterialLiquid Crystal Polymer
Material Flammability R.UL94 V-0
Mating Cycles-
Max. Temp.85?C
Max. Voltage50V AC/DC
MfrTE Connectivity AMP Con.
Mounting TypeSurface Mount, Right An.
Number of Contacts39
Number of Positions39
Number of Rows1
Operating Temperature-25?C ~ 85?C
PackageTape & Reel (TR)
Pitch0.012" (0.30mm)
Product StatusObsolete
Series-, FPC
Terminal FinishGold Plated
Terminal TypeSurface Mount
TerminationSolder
Voltage Rating50V
Width0.114 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1-2013496-50.38400040004TE CONNECTIVITY/AMP BRAND0.38 @ 4000
Newark41AJ01570.511400040004AMP - TE CONNECTIVITY0.511 @ 4000
thumbzoomDigi-Key40311220.613400040004TE Connectivity AMP Connectors0.613 @ 4000
thumbzoomZoroG2010412050.734000136Te Connectivity0.73 @ 4000
