TE Connectivity 1-2029059-6

B00KSN8GPA

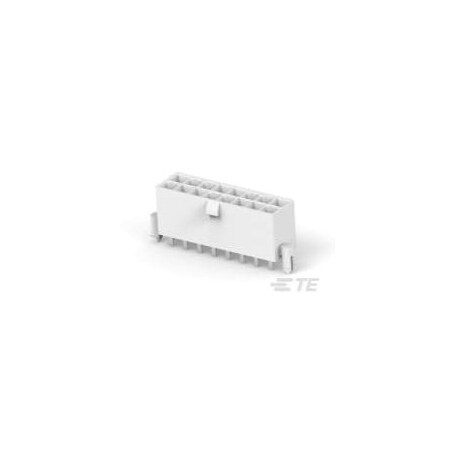

TE Connectivity Part Number 1-2029059-6

TE Connectivity Part Number 1-2029059-6zoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number2029059
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post0.138" (3.50mm)
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Country of Origin (subj.China
Current Rating (Amps)9A
DescriptionCONN HEADER VERT 16POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part Number1-2029059-6-ND
Fastening TypeLocking Ramp
FeaturesBoard Lock, Glow Wire C.
Ingress Protection-
Insulation ColorWhite
Insulation Height0.504" (12.80mm)
Insulation MaterialPolyamide (PA66), Nylon.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.1-2029059-6
Manufacturer Standard L.15 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Positions16
Number of Positions Loa.All
Number of Rows2
Operating Temperature-40?C ~ 105?C
Overall Contact Length-
PackageTray
Pitch - Mating0.165" (4.20mm)
Product StatusActive
Row Spacing - Mating0.165" (4.20mm)
SeriesVAL-U-LOK
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating600VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 1-2029059-60.81701415TE CONNECTIVITY/AMP BRAND0.81 @ 70
Verical1-2029059-60.8638566TE Connectivity0.86 @ 38
thumbzoomDigi-Key23245170.875142857143112345TE Connectivity AMP Connectors0.875142857143 @ 112
Newark21R33481.06135025TE CONNECTIVITY1.06 @ 1000
HotendaH13010111.1512125TE Connectivity AMP Connectors1.1512 @ 25
thumbzoomZoroG6009372221.3467525Te Connectivity1.34 @ 675
