TE Connectivity / AMP 2229806-1

B07KTHJMK2

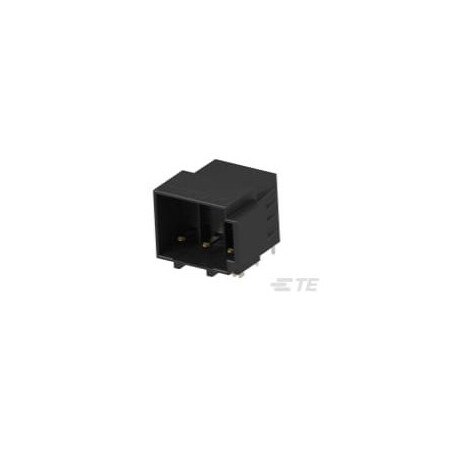

2229806-1, D3950 HDR 6POS 2ROW X Key (10 Items)

2229806-1, D3950 HDR 6POS 2ROW X Key (10 Items)zoom

Attributes

Key Value
ApplicationsGeneral Purpose, Indust.
Base Product Number2229806
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.-
Contact Length - Mating-
Contact Length - Post0.150" (3.81mm)
Contact MaterialCopper Alloy
Contact ShapeRectangular
Contact TypeTab
Country of Origin (subj.China
Current Rating (Amps)-
DescriptionCONN HEADER R/A 6POS 7..
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA120627-ND
Fastening TypeDetent Lock
FeaturesBoard Lock
Ingress Protection-
Insulation ColorBlack
Insulation Height0.803" (20.40mm)
Insulation MaterialThermoplastic, Polyeste.
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2229806-1
Manufacturer Standard L.28 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole, Right Ang.
Number of Positions6
Number of Positions Loa.All
Number of Rows2
Operating Temperature-30?C ~ 105?C
Overall Contact Length-
PackageTray
Pitch - Mating0.295" (7.50mm)
Product StatusActive
Row Spacing - Mating-
SeriesDynamic D-3950
ShroudingShrouded - 4 Wall
StyleBoard to Board or Cable
TerminationSolder
Voltage Rating600V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY AMP BRAND 2229806-11.5635407TE CONNECTIVITY/AMP BRAND1.56 @ 35
thumbzoomZoroG3009390071.76514510Te Connectivity1.76 @ 5145
Newark75AC75903.731407AMP - TE CONNECTIVITY3.73 @ 10
Onlinecomponents.com2229806-14.011490TE Connectivity / AMP Brand4.01 @ 10
thumbzoomDigi-Key50219725.10961407TE Connectivity AMP Connectors5.1096 @ 10
