mpn:
manufacturer:
MPN:
Weight:
1.0
Weight:
1.0 LB
Preferred Price:
5.49
Price:
5.49
Min Simple Price:
2.25
Absolute Min Price:
4.26
Min Price:
4.26
qty:
34
simpleSku:
DA1MjQ:::3-1564518-1
sku:
DA1MjQ::KN:3-1564518-1@y0
condition:
11
seller:
Waldom
amzMan:
deutsch
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Base Product Number | 1564518 |
| Body Material | PBT GF |
| Cable Exit Angle | Other |
| Category | Connectors, Interconnects |
| Centerline (Pitch) | 4, 6, .157, .236 |
| Circuit Application | Signal |
| Color | Green |
| Connector Position Assurance Capable, Strain Relief | No |
| Connector Style | Housing for male terminals |
| Connector System | Wire-to-Wire |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Country of Origin (subject to change) | Germany |
| Degree of Protection | IP67 |

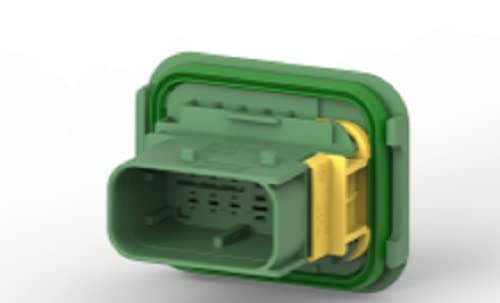

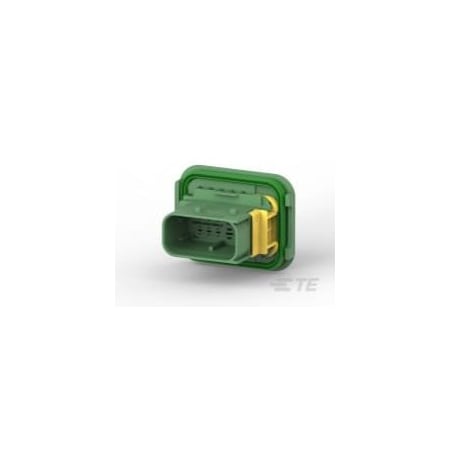

| Description | CONN PLUG HSG 10POS |
| Detailed Description | 10 Rectangular Connectors - Housings Plug Green |
| Digi-Key Part Number | 3-1564518-1-ND |
| Fastening Type | Slide-On |
| Features | Mounting Flange, Sealed |
| Height?:</span> <em class="feature-value">48.1?mm?[?1.894?in | 48.1?mm?[?1.894?in?] |
| Hybrid Connector, Polarized, Sealable, Serviceable, Terminal Position Assurance | Yes |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Length?:</span> <em class="feature-value">50.5?mm?[?1.988?in | 50.5?mm?[?1.988?in?] |
| Manufacturer Product Number | 3-1564518-1 |
| Manufacturer, Mfr | TE Connectivity AMP Connectors |
| Mating Tab Width | .063, .11, 1.6, 2.8 |
| Mounting Feature | Without |
| Mounting Type | Panel Mount |
| Nominal Voltage Architecture | 12, 24, 42, 60 |
| Note | Contacts Not Included |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Operating Temperature | -40?C ~ 140?C |
| Operating Temperature Range?:</span> <em class="feature-value">-40 ? 140??C?[?-40 ? 284??F | -40 ? 140??C?[?-40 ? 284??F?] |
| Operating Voltage | 60 |
| Package | Bulk |
| Packaging Method | Carton |
| Packaging Quantity | 220 |
| Part Status, Product Status | Active |
| Pitch | - |
| Primary Locking Feature | On the Terminal |
| Row Spacing | 0.236" (6.00mm) |
| Row-to-Row Spacing?:</span> <em class="feature-value">2.54?mm?[?.1?in | 2.54?mm?[?.1?in?] |
| Series | Heavy Duty Sealed Connector Series, MCP 1.5K/2.8 |
| UL Flammability Rating | UL 94V-0 |
| Width?:</span> <em class="feature-value">39.8?mm?[?1.567?in | 39.8?mm?[?1.567?in?] |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Waldom | TE CONNECTIVITY AMP BRAND 3-1564518-1 | 2.25 | 23.85 | 25 | 1656 | TE CONNECTIVITY/AMP BRAND | 2.25 @ Qty: 25+ | |||
| Newark | 98X9983 | 2.89 | 2544.934 | 2200 | 34 | TE CONNECTIVITY | 2.89 @ Qty: 1000+ | |||
 | Zoro | G100956426 | 3.31 | 2914.786 | 2200 | 34 | Te Connectivity | 3.31 @ Qty: 2200+ | ||
| TE Connectivity | 3-1564518-1 | 3.47 | 3.47 | 1 | 220 | TE Connectivity (TE) | 3.47 @ Qty: 1+ | |||
 | Digi-Key | 5428262 | 3.59 | 38.054 | 25 | 1656 | TE Connectivity AMP Connectors | 3.59 @ Qty: 25+ |
