mpn:
manufacturer:
MPN:
Weight:
1.0
Weight:
1.0 LB
Preferred Price:
4.76
Price:
4.76
Min Simple Price:
1.87
Absolute Min Price:
3.76
Min Price:
3.76
qty:
45
simpleSku:
DA1MjQ:::3-1564528-1
sku:
DA1MjQ::2Y:3-1564528-1@y0
condition:
11
seller:
Waldom
amzMan:
deutsch
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Body Material | PBT GF |
| Cable Exit Angle | Other |
| Centerline (Pitch) | 4, 6, .157, .236 |
| Circuit Application | Signal |
| Color | Green |
| Connector Position Assurance Capable, Strain Relief | No |

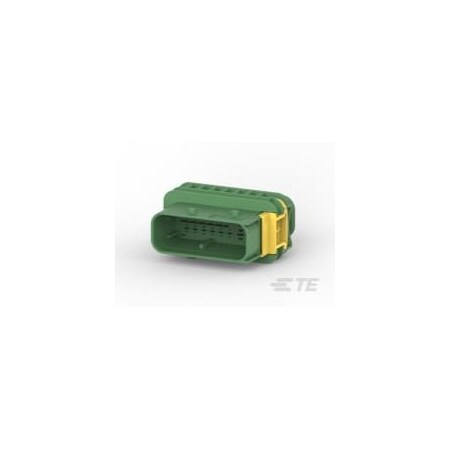

| Connector Style | Housing for male terminals |
| Connector System | Wire-to-Wire |
| Country of Origin (subject to change) | Germany |
| Degree of Protection | IP67 |
| Height | 48.1?mm?[?1.894?in?] |
| Hybrid Connector, Polarized, Sealable, Serviceable, Terminal Position Assurance | Yes |
| Length | 52.6?mm?[?2.071?in?] |
| Mating Tab Width | .063, .11, 1.6, 2.8 |
| Mounting Feature | Without |
| Nominal Voltage Architecture | 12, 24, 42, 60 |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Operating Temperature Range | -40 ? 140??C?[?-40 ? 284??F?] |
| Operating Voltage | 60 |
| Packaging Method | Box |
| Packaging Quantity | 200 |
| Primary Locking Feature | On the Terminal |
| Row-to-Row Spacing | 2.54?mm?[?.1?in?] |
| UL Flammability Rating | UL 94V-0 |
| Width | 27?mm?[?1.063?in?] |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
| Waldom | TE CONNECTIVITY AMP BRAND 3-1564528-1 | 1.87 | 23.562 | 30 | 357 | TE CONNECTIVITY/AMP BRAND | 1.87 @ Qty: 30+ | |||
| Digi-Key | 3-1564528-1-ND | 1.96514 | 1730.502284 | 2200 | 50 | TE Connectivity AMP Connectors | 1.96514 @ Qty: 2200+ | |||
| Newark | 98X9987 | 2.22 | 1954.932 | 2200 | 45 | TE CONNECTIVITY | 2.22 @ Qty: 2200+ | |||
| TE Connectivity | 3-1564528-1 | 2.88 | 2.88 | 1 | 200 | TE Connectivity (TE) | 2.88 @ Qty: 1+ | |||
 | Zoro | G100956389 | 6182.0 | 5443869.2 | 2200 | 45 | Te Connectivity | 6182.0 @ Qty: 2200+ |
