TE Connectivity 3-641119-3

B00KSPX1Y4

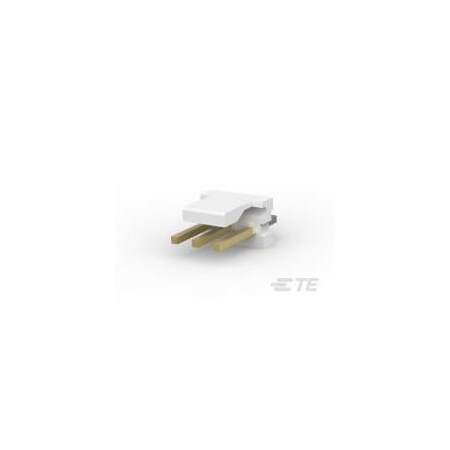

TE Connectivity Part Number 3-641119-3

TE Connectivity Part Number 3-641119-3zoom

Attributes

Key Value
Alternate Part No.571-3-641119-3
ApplicationWire-to-Board, Power, P.
ApplicationsGeneral Purpose, Indust.
Base Product Number641119
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connection MaterialCopper Alloy
Connection TypeThrough Hole - Solder
Connector TypeHeader
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.-
Contact GenderPin (Male)
Contact Length - Mating0.400" (10.16mm)
Contact Length - Post0.125" (3.18mm)
Contact MaterialCopper Alloy
Contact PlatingGold
Contact Plating MaterialNickel
Contact ShapeSquare
Contact TypeMale Pin
Current Rating7 A
Current Rating (Amps)Varies by Wire Gauge
DescriptionCONN HEADER VERT 3POS 3.
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA144571-ND
Fastening TypeFriction Lock
Features-, Unshrouded Header
Flammability RatingUL 94 V-0
Housing MaterialPolyester
Ingress Protection-
Insulation ColorNatural
Insulation Height0.425" (10.80mm)
Insulation MaterialThermoplastic, Glass Fi.
ItemHeader
Latching TypeFriction Lock
ManufacturerTE Connectivity AMP Con.
Manufacturer Part No.3-641119-3
Manufacturer Product Nu.3-641119-3
Manufacturer Standard L.19 Weeks
Mated Stacking Heights-
Material Flammability R.UL94 V-0
Max. Temp.221 Degrees F
Max. Voltage600V AC
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeBoard Mount; Vertical, .
Number of Positions3
Number of Positions Loa.All
Number of Rows1
Operating Temperature-55?C ~ 105?C
Overall Contact Length0.650" (16.51mm)
Overall Length0.468 in
PackageBulk
Package Quantity1
Pin Length (In.)0.4 in
Pitch3.96 mm
Pitch - Mating0.156" (3.96mm)
Product CategoryHeaders & Wire Housings
Product StatusActive
Product TypeHeaders
Row Spacing - Mating-
SeriesMTA-156
ShroudingShrouded - 1 Wall
StandardsUL, CSA Listed
StyleBoard to Cable/Wire
Terminal TypeTab
TerminationSolder
Termination Post Length3.18 mm
Termination StyleThrough Hole
TypeUnshrouded
Voltage Rating600VAC, 600 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark96AC61880.92620001584AMP - TE CONNECTIVITY0.926 @ 1
Onlinecomponents.com3-641119-31.01202041TE Connectivity1.01 @ 20
WaldomTE CONNECTIVITY AMP BRAND 3-641119-31.19452115TE CONNECTIVITY/AMP BRAND1.19 @ 45
thumbzoomswatee.com3-641119-31.251765TE Connectivity1.25 @ 1
thumbzoomDigi-Key18626621.41613952TE Connectivity AMP Connectors1.416 @ 1
thumbzoomZoroG50092879585.051In StockTe Connectivity85.05 @ 1
