TE Connectivity / AMP 5104338-2

B07KWHLHXK

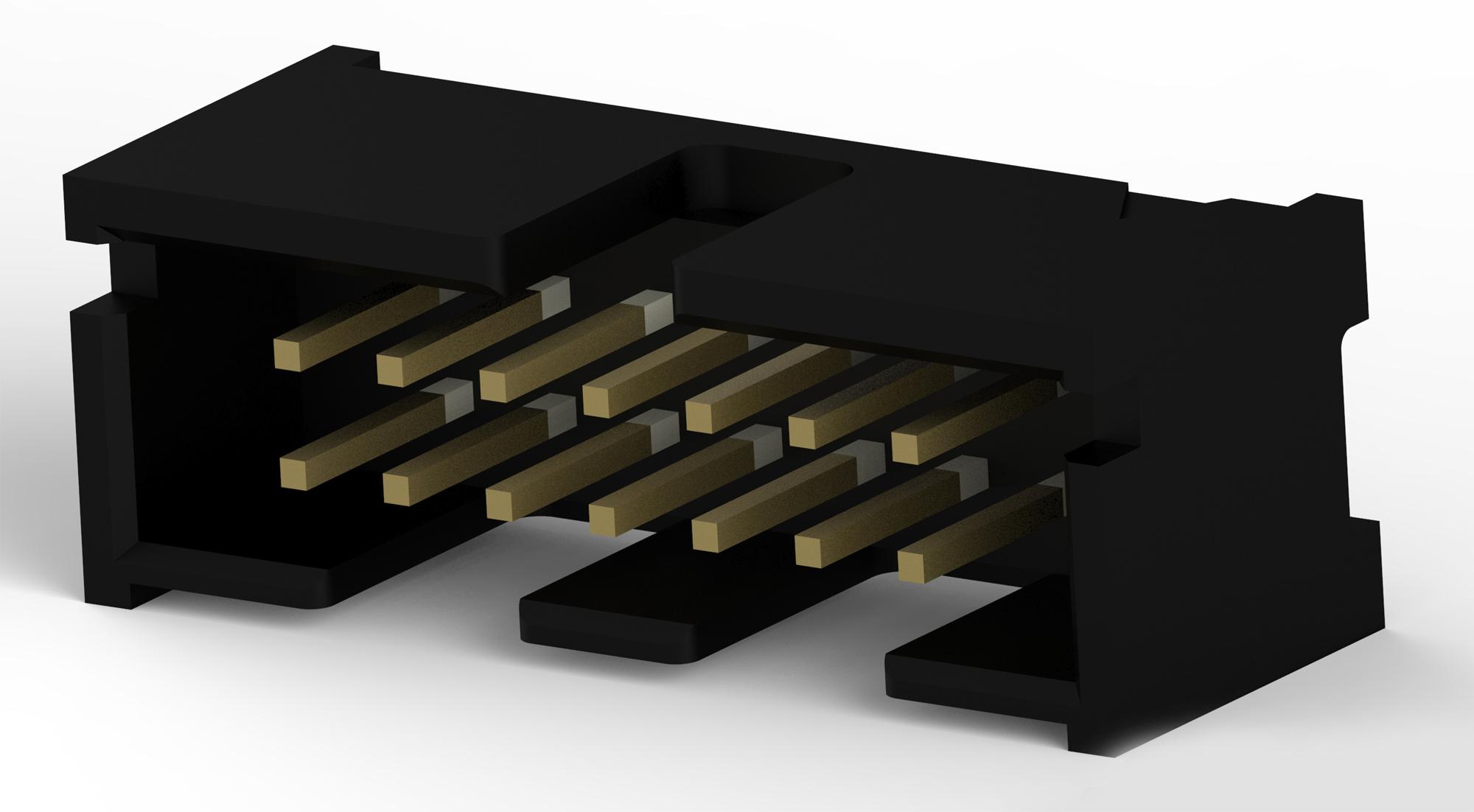

5104338-2, A/L Low PRO HDR 14P VERT HT (25 Items)

5104338-2, A/L Low PRO HDR 14P VERT HT (25 Items)zoom

Attributes

Key Value
Alternate Part No.571-5104338-2
Applications-
Base Product Number5104338
BrandTE Connectivity / AMP
CategoryConnectors, Interconnec.
Connector TypeHeader
Contact Finish - MatingGold or Gold-Palladium
Contact Finish - PostTin
Contact Finish Thicknes.15.0?in (0.38?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact GenderPin (Male)
Contact Length - Mating0.240" (6.10mm)
Contact Length - Post0.120" (3.05mm)
Contact MaterialBrass, Phosphor Bronze
Contact PlatingGold
Contact ShapeSquare
Contact TypeMale Pin
Current Rating1 A
Current Rating (Amps)1A per Contact
Fastening TypePush-Pull
FeaturesKeying Slot
Flammability RatingUL 94 V-0
Housing MaterialThermoplastic
Ingress Protection-
Insulation ColorBlack
Insulation Height0.385" (9.78mm)
Insulation MaterialPolyphthalamide (PPA), .
Insulation Resistance5000 MOhms
Latching TypeUnlatched
ManufacturerTE Connectivity
Manufacturer Part No.5104338-2
Mated Stacking Heights-
Material Flammability R.UL94 V-0
MfrTE Connectivity AMP Con.
Mounting AngleVertical
Mounting TypeThrough Hole
Number of Positions14
Number of Positions Loa.All
Number of Rows2
Operating Temperature-65?C ~ 105?C
Operating Temperature R.- 65 C to + 105 C
Overall Contact Length-
PackageTube
PackagingTube
Part StatusActive
Pitch2.54 mm
Pitch - Mating0.100" (2.54mm)
Product CategoryHeaders & Wire Housings
Product TypeHeaders
Row Spacing2.54 mm
Row Spacing - Mating0.100" (2.54mm)
SeriesAMP-LATCH
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationKinked Pin, Solder
Termination Post Length3.05 mm
Termination StyleThrough Hole
TradenameAMP-LATCH
TypeShrouded
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com5104338-21.9211400TE Connectivity / AMP Brand1.92 @ 25
thumbzoomswatee.com5104338-22.56160TE Connectivity2.56 @ 25
thumbzoomNewark56T02722.8870025AMP - TE CONNECTIVITY2.88 @ 500
us.rs-online.com720191713.0570025TE Connectivity3.05 @ 700
Digi-Key31187773.946812533TE Connectivity AMP Connectors3.9468 @ 25
Future Electronics49077623.9856870025TE Connectivity3.98568 @ 700
AmazonSCB07KWHLHXK89.79125TE Connectivity / AMP89.79 @ 25
