TE Connectivity / AMP 8059-2G1

B00LQPRO5C

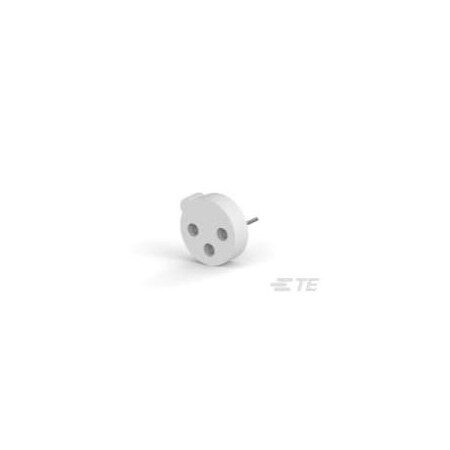

TE Connectivity / AMP 8059-2G1 Transistor Socket, 3POS, Through Hole

TE Connectivity / AMP 8059-2G1 Transistor Socket, 3POS, Through Holezoom

Attributes

Key Value
ApplicationSignal
Circuit ApplicationSignal
ColorRed
Connection MaterialBeryllium Copper
ConnectorPrinted Circuit Board
Connector Mounting TypeBoard Mount
Connector Terminates ToPrinted Circuit Board
Contact Current Rating .3
Contact Finish - MatingGold
Contact Finish - PostGold
Contact Finish Thicknes.-
Contact Finish Thicknes.-
Contact Material - Mati.Copper Alloy
Contact Material - PostCopper Alloy
Contact Resistance20mOhm
Current Rating3 A
Current Rating (Amps)3 A
Features-
Flammability RatingUL 94 V-0
Housing MaterialPolyamide (PA), Nylon
Insulation MaterialGlass-Filled Polyamide .
Insulator Flammability .UL 94V-0
Insulator MaterialGlass-Filled Polyamide .
ItemSocket
Lead Size Accepted.41?mm?[?.02?in?]
Material Flammability R.-
Max. Temp.125?C
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts3
Number of Positions3
Number of Positions or .3 (Round)
Operating Temperature-55?C ~ 125?C
Operating Temperature R.-55 ? 125??C?[?-67 ? 25.
PackageTO-5
Package Quantity1
Part StatusActive
Pin Diameter5.08?mm?[?.2?in?]
Pitch - Mating-
Pitch - Post-
Product TypeSocket
ProfileUltra-Low
Sleeve MaterialBrass
Sleeve Plating MaterialGold
Socket TypeTransistor
Terminal ConfigurationContact
Terminal FinishGold Plated
Terminal MaterialBeryllium Copper
Terminal PlatingGold
Terminal TypePrinted Circuit
TerminationSolder
Termination MethodPrinted Circuit
Termination Post Length0.115" (2.92mm)
TypeTransistor, TO-5

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
WaldomTE CONNECTIVITY BUCHANAN 8059-2G15.49101389TE CONNECTIVITY / BUCHANAN5.49 @ 10
Onlinecomponents.com8059-2G16.581In StockTE Connectivity / Buchanan Brand6.58 @ 1
thumbzoomNewark65F18767.16400In StockAMP - TE CONNECTIVITY7.16 @ 250
TE Connectivity4-1437508-18.480361325TE Connectivity (TE)8.48036 @ 1
HotendaH14884689.221In StockTE Connectivity AMP Connectors9.22 @ 1
AmazonSCB00DKC8UXO23.81In StockTE Connectivity %2F Buchanan Brand23.8 @ 1
thumbzoomZoroG701069082114.951In StockTe Connectivity114.95 @ 1
