mpn:
brand:
manufacturer:
MPN:
Description:

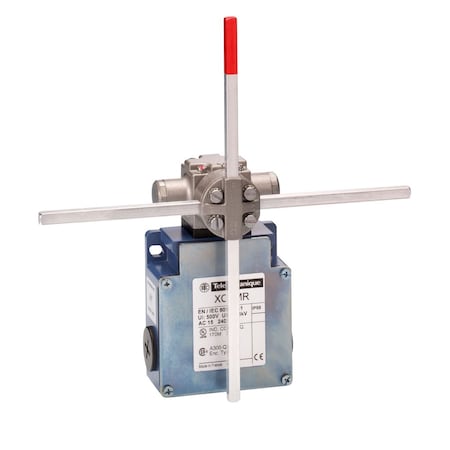

LIMIT SWITCH 240VAC 10AMP XCK Stay PutCrossed Rods Lever 2 Direction
Weight:
0.10125
Weight:
0.10125 LB
Preferred Price:
464.66
Price:
464.66
Min Simple Price:
262.52
Absolute Min Price:
372.77
Min Price:
372.77
Dimensions:
[1.0, 1.0, 1.0]
qty:
21
simpleSku:
DE4MjQ:::XCKMR54D1
sku:
DE4MjQ::NV:XCKMR54D1@y0
condition:
11
seller:
TME
amzMan:
telemecanique sensors
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| AC Contact Rating - Limit Switch | 10A @ 240V |
| Action | Lateral approach, 2 directions;Slow-break, staggered;By any moving part |
| Actuator | Stay put crossed rods lever metal square rod 6 mm, L = 200 mm |
| Actuator Location - Limit Switch | Side |
| Actuator Style - Limit Switch | Rod Lever, Rotary |
| Actuator Type | Crossed Rods |
| Amperage Rating, Amps | 10 |
| Application | For hoisting and mechanical handling applications |
| Basic Actuator Style - Limit Switch, Movement | Rotary |
| Body Depth - Limit Switch | 59 mm |
| Body Height - Limit Switch | 118mm |
| Body material | metal |
| Body Material, Head Material | zamak |
| Body Style (Limit Switch) | fixed |
| Brand | Telemecanique |
| Catalog Number | XCKMR54D1 |
| Certification | UL || CCC || CSA || CE |
| Connection, Electrical Connection | screw-clamp terminals 1 x 0.5...2 x 2.5 mm? |
| Contact Configuration | 2 x (2 NC) |
| Contact Form- Switches | 2x(2NC) |
| Country of Origin | Indonesia |
| Current Rating | 10 A |
| Enclosure | IP66 |
| Head Type | Side Rotary Head |
| IP Rating | IP66 conforming to EN/IEC 60529 |
| Item, Item Type, Type of sensor | limit switch |
| Made in USA | No |
| Manufacturer | TELEMECANIQUE SENSORS, Schneider Electric |
| Min. Actuation Velocity Horizontal | 1.5 m/s actuation point on the rod between 65 and 95 mm |
| Mounting | By The Body |
| Number of Poles | 4 |
| Operating Temp. Range | -40-70 ?C |
| Operating Temperature | -25-70 A Degrees C |
| Operating temperature | -25...70?C |
| Output configuration | NC x2 |
| Series | XCKM Series, special format; XCKMR |
| Shock Resistance | 50 gn EN/IEC 60068-2-27 |
| Size | 118-118 MM,200 MM,59 MM |
| Special Features | FIXED,METAL, lateral approach, 2 directions |
| Standard | 25 GN 10-500 HZ)EN/IEC 60068-2-6,50 GN EN/IEC 60068-2-27,EN/IEC 60947-5-1-UL 508-CSA C22.2 NO 14,IK07 EN 50102,IP66 EN/IEC 60529,UL-CCC-CSA-CE,CLASS I IEC 60536 |
| Standards | EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 |
| Sub Brand | XCKMR |
| Termination | Screw |
| UPC, UPC Code | 785901613541 |
| Voltage Rating | 240 V, 300 V (CSA, UL) 500 V (IEC) |
| Warranty Description | Contractual Warranty:18 months |
| Weight | 0.55 kg |
| Width | 200 mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | TME | XCKMR54D1 | 262.52 | 262.52 | 1 | In Stock | TELEMECANIQUE SENSORS | 262.52 @ Qty: 1+ | ||
| RS Delivers | 179-9869 | 366.984 | 366.984 | 1 | 6 | Telemecanique Sensors | 366.984 @ Qty: 1+ | |||
 | Zoro | G0561298 | 452.99 | 452.99 | 1 | In Stock | Telemecanique Sensors | 1.62 | 452.99 @ Qty: 1+ | |
 | Newark | 89H6573 | 546.78 | 546.78 | 1 | In Stock | TELEMECANIQUE SENSORS | 546.78 @ Qty: 1+ | ||
 | National Supply Network | 69670149 | 572.3 | 572.3 | 1 | In Stock | Telemecanique Sensors | 572.3 @ Qty: 1+ | ||
| us.rs-online.com | 70320169 | 583.55 | 583.55 | 1 | 15 | Telemecanique Sensors | 583.55 @ Qty: 1+ | |||
 | crescentelectric.com | 188361 | 618.91 | 618.91 | 1 | In Stock | Telemecanique | 618.91 @ Qty: 1+ |
