Description:

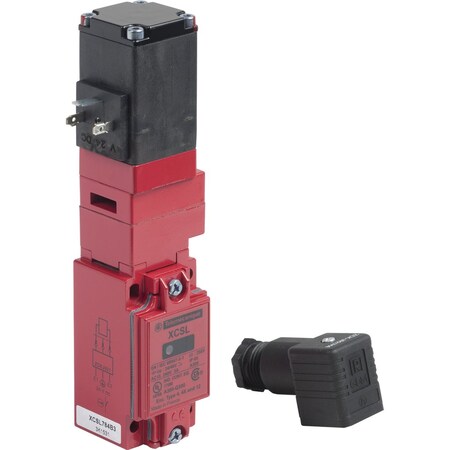

Switch XCSL, AC/DC, 50/60 Hz, key operated turret head
Weight:
2.12525620568
Weight:
0.12625 LB
Preferred Price:
899.14
Price:
899.14
Min Simple Price:
507.99
Absolute Min Price:
721.34
Min Price:
721.34
Dimensions:
[1.0, 1.0, 1.0]
qty:
1
simpleSku:
MxODM1:::XCSL784B3
sku:
MxODM1::RM:XCSL784B3@y0
condition:
11
seller:
Zoro
amzMan:
telemecanique sensors
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-5-1 |
| Actuator | KEY |
| Amperage Rating | 10 |
| Application, Head Type | key operated turret head |
| Brand | Telemecanique |
| Catalog Number | XCSL784B3 |
| Component Name, Sub Brand | XCSL |
| Connection | (1) 0.5 INCH NPT (CONDUIT ENTRANCE) SCREW CLAMP |
| Contact Configuration | 1 N.O.(STAGGERED)/2 N.C. |
| Country of Origin | France |
| Electrical Shock Protection Class, Standard | class I EN/IEC 60536 |
| Enclosure | NEMA 1/2/3/4/12 - IP67 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND ICE RESISTANT (INDOOR/OUTDOOR) |
| GTIN | 00785901390725, 03389110958812 |
| Item Type, Product Or Component Type | safety switch |
| Item, Product Type | Interlock Switch 300Vac 10As Xcsl |
| Load Factor | 1 |
| Made in USA | No |
| Manufacturer | Schneider Electric |
| Maximum Load Current | <= 15 A |
| Maximum Operating Rate, Operating Cycles | 10 cyc/mn for maximum durability |
| Mechanical Durability | 1000000 cycles |
| Number of Poles | 3 |
| Operating Temperature | -13 TO 158 DEGREES F |
| Positive Opening | with NC contact |
| Power Consumption In Va | 10 VA inrush || 10 VA sealed |
| Promotion Restriction | Not eligible for promotion |
| Protection Type, Special Features | overvoltage protection signalling circuit |
| Protective Treatment | TC |
| Safety Level | can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508 |
| Series | XCS Series |
| Signalling Circuit Consumption | 7 mA |
| Size | 0.5 IN NPT CONDUIT ENTRY |
| Supply Frequency | 50/60 Hz |
| Supply Voltage Type | AC/DC |
| UPC, UPC Code | 785901390725 |
| Voltage Rating | 300VAC |
| Warranty Description | Contractual Warranty:18 months |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | Zoro | G0835530 | 507.99 | 507.99 | 1 | In Stock | Telemecanique Sensors | 2.02 | 507.99 @ Qty: 1+ | |
 | Newark | 80C6751 | 597.02 | 597.02 | 1 | In Stock | TELEMECANIQUE SENSORS | 597.02 @ Qty: 1+ | ||
 | crescentelectric.com | 189042 | 867.72 | 867.72 | 1 | In Stock | Telemecanique | 867.72 @ Qty: 1+ | ||
| sustainablesupply.com | C3048307 | 917.79 | 917.79 | 1 | In Stock | Telemecanique Sensors | 2.02 | 917.79 @ Qty: 1+ | ||
| us.rs-online.com | 71142419 | 1251.77 | 1251.77 | 1 | 1 | Telemecanique Sensors | 1251.77 @ Qty: 1+ |
