TELEMECANIQUE SENSORS XS130BLPBM12

B00CONC9WS

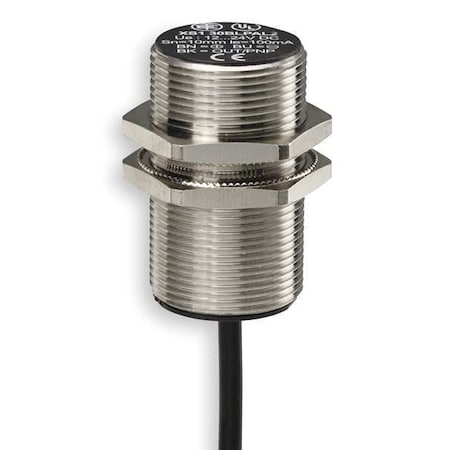

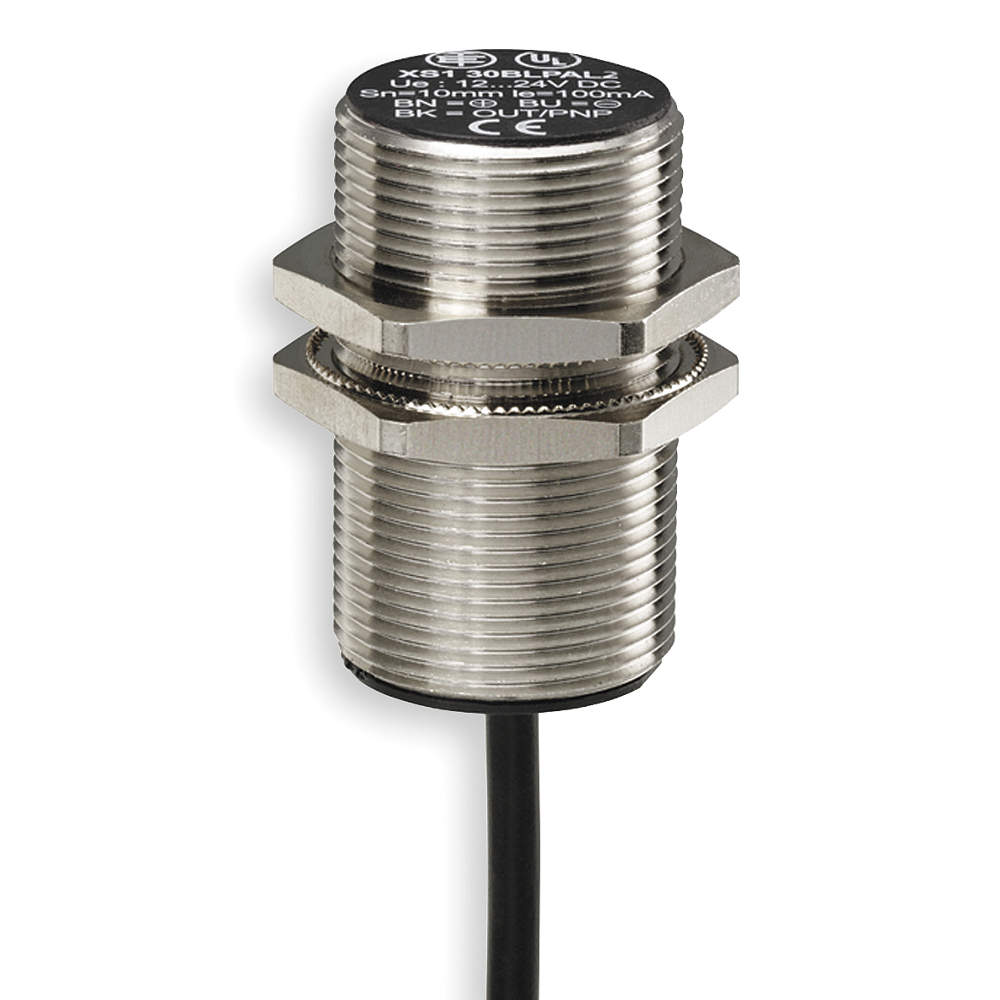

Telemecanique XS130BLPBM12 Inductive Proximity Sensor, Flush Mount, Metal 30-mm Barrel, for Light Industry, 3-Wire DC PNP Wiring, PNP Input, NC Output, M12 Micro-Connector

Telemecanique XS130BLPBM12 Inductive Proximity Sensor, Flush Mount, Metal 30-mm Barrel, for Light Industry, 3-Wire DC PNP Wiring, PNP Input, NC Output, M12 Micro-Connectorzoom

Attributes

Key Value
Basic Proximity Sensor .Metal
Body StyleBarrel, Cylindrical
BrandTelemecanique Sensors
Case MaterialNickel Plated Brass
Country of Origin (subj.Indonesia
Description/Special Fea.Overload And Short-Circ.
Detection Range8 mm
Housing MaterialHousing Material
IP RatingIP67, 67
ItemCylindrical Proximity S.
Length41 mm, Length
Length (Straight Wirewa.41 mm
Max. Current Load100mA
Max. Detecting Distance10.0 mm
Maximum dc Voltage24V
Maximum Operating Tempe.+70?C
Maximum Switching Frequ.200Hz
Measurement Range10 mm
Minimum Operating Tempe.-25?C
Mounting StyleFlush Shielded
Mounting TypeFlush Mount, M30 x 1.5 .
NEMA Rating4X
Operating Temp. Range-13 Degrees to 158 Deg.
OutputPNP
Output ModeNC
Output TypePNP-NC
Primary TypeInductive Proximity Sen.
Proximity Sensing MethodInductive
Proximity Sensor Diamet.30.0 mm
Proximity Sensor Electr.4 Pin M12 Connector
Proximity Sensor Operat.200 Hz
Proximity Sensor Output.3 Wire PNP
Proximity Sensor Power .12 to 24V DC
Proximity Sensor StyleCylindrical Proximity S.
Reverse Polarity Protec.Yes
SeriesXS100 Series
Shielded / UnshieldedShielded
ShieldingShielded
StandardsCE Compliance, CSA Cert.
StockStock
Supply Voltage12 ? 24 V dc, 10-36 VDC
Terminal TypeM12 - 4 Pin
Thread SizeM30 x 1.5
UPC Code785901895138

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRS Delivers816-740149.0441200Telemecanique Sensors49.044 @ 200
thumbzoomNewark64M353155.871200TELEMECANIQUE SENSORS55.87 @ 200
thumbzoomsustainablesupply.comC293283261.811200Telemecanique Sensors0.361.81 @ 200
thumbzoomZoroG056885464.17120026Telemecanique Sensors0.364.17 @ 200
us.rs-online.com70007554110.071200Telemecanique Sensors110.07 @ 200
thumbzoomRaptor SuppliesAG9FPJ118.04802751200TELEMECANIQUE SENSORS118.0480275 @ 200
