Description:

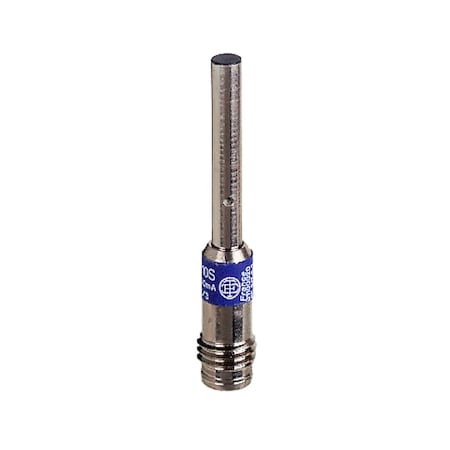

Inductive Sensor 24Vdc 100Ma Xs +Options
Attributes
| Key ^ | Value |
|---|---|
| Application | general purpose |
| Basic Proximity Sensor Case Material | Nickel Plated Brass; PPS |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Yellow |
| IP Rating | IP67 |
| Item | Inductive Sensor 24Vdc 100Ma Xs +Options |
| Length | 42 mm |
| Max. Current Load | 10 mA |
| Max. Detecting Distance | 1 mm |
| Maximum Delay Response | 1 ms |
| Measurement Range | 0 to 0.8 mm |
| Operating Temp. Range | -25 to 70 Degrees C |
| Output Mode | 1 NO |
| Promotion Restriction | Not eligible for promotion |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Electrical Connection | Male Connector M8, 3 Pins |
| Proximity Sensor Operating Frequency | Less than Or Equal to 5000 Hz |
| Proximity Sensor Output Circuit Type | 3-Wire DC PNP |
| Proximity Sensor Power Requirement | 5 to 24V DC |
| Proximity Sensor Style | Cylindrical 4 mm Plain |
| Series | XS1 |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Standards | CSA; UL; CE Marked |
| Storage Temp. Range | -40-85 ?C |
| Supply Voltage Limits | 5-30 V DC |
