Description:

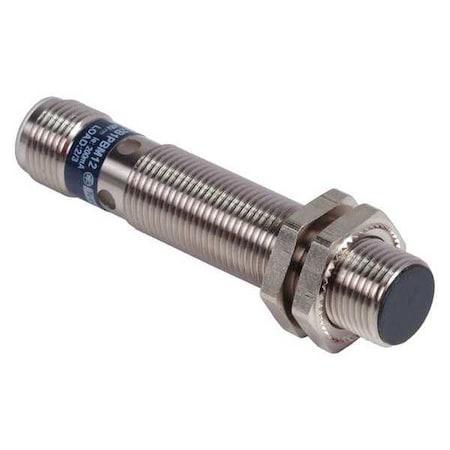

Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 12 to 48V DC, Shielded, Proximity Sensor Operating Frequency 2,500 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 4 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating 65, 67, Case Material Nickel Plated Brass, Length 62 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
Attributes
| Key ^ | Value |
|---|---|
| Basic Proximity Sensor Case Material | Metal |
| Case Material | Nickel Plated Brass |
| Description/Special Features | Overload And Short-Circuit Protection, Reverse Polarity, Yellow LED Output Indication |
| Differential Travel | 1...15% of Sr |
| IP Rating | 65, 67 |
| Item, Proximity Sensor Style | Cylindrical Proximity Sensor |
| Length, Length (Straight Wireway) | 62 mm |
| Max. Current Load | 200mA |
| Max. Detecting Distance | 4 mm |
| Maximum Voltage Drop | <2 V closed) |
| Measurement Range | 2.5 to 4 mm |
| Operating Temp. Range | -13 Degrees to 158 Degrees F |
| Output Mode | NC |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Diameter | 12 mm |
| Proximity Sensor Electrical Connection | 4 Pin M12 Connector |
| Proximity Sensor Operating Frequency | 2,500 Hz |
| Proximity Sensor Output Circuit Type | 3 Wire PNP |
| Proximity Sensor Power Requirement | 12 to 48V DC |
| Shielded / Unshielded | Shielded |
| Standards | CE Compliance, CSA Certified, UL Listed |
| Switching Capacity | <= 200 mA DC overload and short-circuit protection |
