Description:

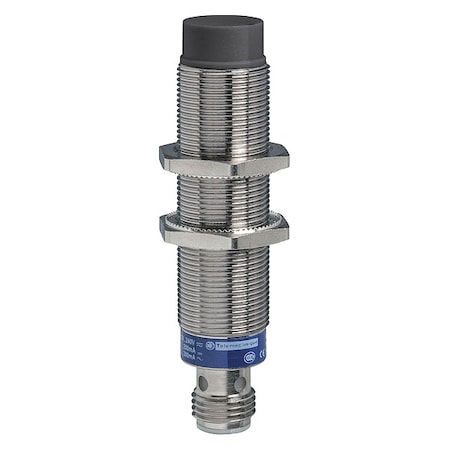

Inductive Sensor 58Vdc 200Ma Xs
Attributes
| Key ^ | Value |
|---|---|
| Basic Proximity Sensor Case Material | Nickel Plated Brass; PPS |
| Description/Special Features | Frontal Detection Face; Output State 1 LED Yellow |
| IP Rating | IP67, IP69K |
| Item | Inductive Sensor 58Vdc 200Ma Xs |
| Length | 72 mm |
| Max. Current Load | 10 mA |
| Max. Detecting Distance | 12 mm |
| Maximum Delay Recovery | 0.7 ms |
| Maximum Voltage Drop | <2 V closed) |
| Measurement Range | 8 to 15 mm |
| Operating Temp. Range | -25 to 70 Degrees C |
| Output Mode | 1 NO |
| Promotion Restriction | Not eligible for promotion |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Electrical Connection | Male Connector M12, 4 Pins |
| Proximity Sensor Operating Frequency | Less than Or Equal to 1000 Hz DC |
| Proximity Sensor Output Circuit Type | 3-Wire DC PNP |
| Proximity Sensor Power Requirement | 12 to 48V DC |
| Proximity Sensor Style | Cylindrical M18 |
| Series | XS6 |
| Shock Resistance | 50 gn 11 ms IEC 60068-2-27 |
| Standards | UL; E2; CSA; CE Marked |
| Switching Capacity | <= 200 mA DC overload and short-circuit protection |
| Vibration Resistance | 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6 |
