Description:

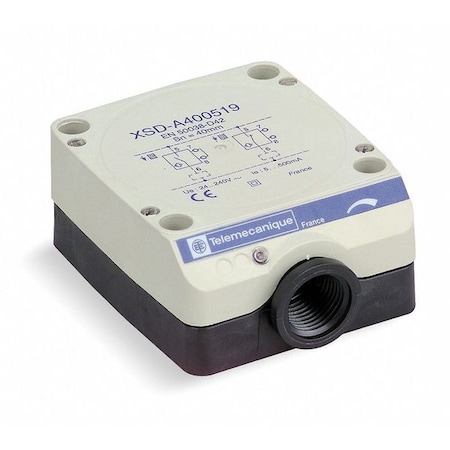

Rectangular Proximity Sensor, Inductive, Proximity Sensor Power Requirement 24 to 240V AC, Unshielded, Proximity Sensor Operating Frequency 10 Hz, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 40 mm, Proximity Sensor Electrical Connection Screw Clamp Terminal, Output Mode NO/NC, IP Rating 67, Case Material Plastic, Length 100 mm, Width 80 mm, Depth 40 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 500mA, Standards CCC
Attributes
| Key | Value |
|---|---|
| Application | general purpose |
| Basic Proximity Sensor Case Material | Plastic |
| Body Type | fixed |
| Case Material | Plastic |
| Depth | 40 mm |
| Description/Special Features | 5 Positions Turret Head Detection Face |
| IP Rating | 67 |
| Item | Rectangular Proximity Sensor |
| Length | 100 mm |
| Length (Straight Wireway) | 100 mm |
| Max. Current Load | 500mA |
| Max. Detecting Distance | 40 mm |
| Operating Temp. Range | -13 Degrees to 158 Degrees F |
| Output Mode | NO/NC |
| Proximity Sensing Method | Inductive |
| Proximity Sensor Electrical Connection | Screw Clamp Terminal |
| Proximity Sensor Operating Frequency | 10 Hz |
| Proximity Sensor Output Circuit Type | 2 Wire |
| Proximity Sensor Power Requirement | 24 to 240V AC |
| Proximity Sensor Style | Rectangular Proximity Sensor |
| Series | XSD |
| Shielded / Unshielded | Unshielded |
| Standards | CCC |
| Width | 80 mm |
