TELEMECANIQUE SENSORS XUK1APANM12

B00CONNQVQ

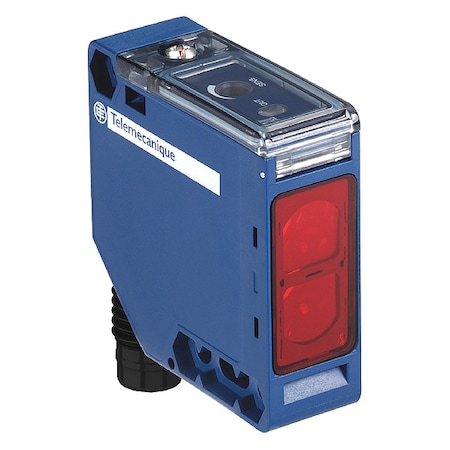

Telemecanique XUK1APANM12 Retroreflective Photoelectric Sensor, Plastic Compact 50 x 50 mm Body, DC Input, 3-Wire PNP Output, NO Contacts, M12 Micro-Connector

Telemecanique XUK1APANM12 Retroreflective Photoelectric Sensor, Plastic Compact 50 x 50 mm Body, DC Input, 3-Wire PNP Output, NO Contacts, M12 Micro-Connectorzoom

Attributes

Key Value
Ambient Air Temperature.-25-55?C
Ambient Air Temperature.-40-70?C
Application-
Body dimensions50x50x18mm
Body materialPBT
BrandTelemecanique
Catalog NumberXUK1APANM12
Connectionconnector M12, 1 male c.
Country of OriginIndonesia
Current Consumption<= 35 mA no-load
Depth50 mm
Detection Systemreflex
Discrete Output TypePNP
Electrical Connection1 male connector M12, 4.
Emissioninfrared reflex
EnclosureIP65 DOUBLE INSULATION .
Enclosure MaterialPBT
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Height50 mm
Ip Degree Of ProtectionIP65 double insulation .
IP RatingIP65
IP ratingIP65
ItemPhotoelectric Sensor 50.
Item TypeGeneral purpose single .
Lens MaterialPMMA
Made in USANo
ManufacturerTELEMECANIQUE SENSORS, .
Manufacturer seriesOsiSense
Materialplastic
Max. operating current0.1A
Maximum Delay Recovery2 ms
Maximum Sensing Distance10 m reflex
Maximum Voltage Drop<1.5 V closed state)
Number of pins4
Operating temperature-25...55?C
Operating Temperature-25-55 A Degrees C
Operation moderetro-reflective
Operation modesDARK-ON
OutputPNP, PNP;1 NO;Discrete;.
Output configurationPNP
Promotion RestrictionNot eligible for promot.
Range0...7m
Related itemsXUZC50
Sensing Range7-7 M REFLEX NEED REFLE.
SeriesXUK1 Series
Shock Resistance30 gn 11 ms) IEC 60068-.
Size1.97
Special Features1 LED yellow)output sta.
StandardCSA-CE-UL,IP65 DOUBLE I.
Sub BrandOsiSense
Switching Capacity In Ma<= 100 mA overload and .
Switching Frequency<= 250 Hz
Switching frequency max250Hz
TypeRetroreflective Sensors
Type Of Output Signaldiscrete
Type of sensorphotoelectric
UPC785901406075
UPC Code785901406075
Vibration Resistance7 gn +/- 1.5 mm 10-55 H.
Voltage Rating12...24 V DC
Warranty DescriptionContractual Warranty:18.
Width18 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG065369863.991In StockTelemecanique Sensors0.1463.99 @ 1
thumbzoomNewark89H6933102.271In StockTELEMECANIQUE SENSORS102.27 @ 1
sustainablesupply.comC3048207105.181In StockTelemecanique Sensors0.14105.18 @ 1
thumbzoomTMEXUK1APANM12109.81113TELEMECANIQUE SENSORS109.81 @ 1
us.rs-online.com70380580113.3811Telemecanique Sensors113.38 @ 1
RS Delivers695-6836130.141In StockTelemecanique Sensors130.14 @ 1
thumbzoomcrescentelectric.com759137143.181In StockTelemecanique143.18 @ 1
