TELEMECANIQUE SENSORS XUX9ARCNT16

B00CON8N0K

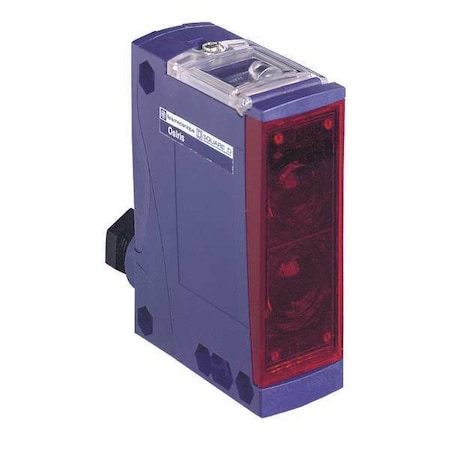

Telemecanique XUX9ARCNT16 Polarized Reflex Photoelectric Sensor, Rectangular Body, AC/DC Input, 5-Wire Relay AC/DC Output, 1 NO 1 NC Contact, Screw Terminal Connection

Telemecanique XUX9ARCNT16 Polarized Reflex Photoelectric Sensor, Rectangular Body, AC/DC Input, 5-Wire Relay AC/DC Output, 1 NO 1 NC Contact, Screw Terminal Connectionzoom

Attributes

Key Value
[Sn] Nominal Sensing Di.11-11 m polarised refle.
Application-
Body MaterialPBT
BrandTelemecanique
Cable Entry1 entry for M16 x 1.5 c.
Catalog NumberXUX9ARCNT16
Connectionscrew-clamp terminals, .
Connection TypeScrews
Country of OriginIndonesia
Current Consumption<= 35 mA no-load
Depth77 mm
Dimensions92 L x 30 W x 77 D mm
Electrical Connectionscrew-clamp terminals, .
Emissionred polarised reflex
EnclosureIP65 DOUBLE INSULATION .
Enclosure MaterialPBT
Environmental ConditionsWATER TIGHT, DUST TIGHT.
Height92 mm
IP RatingIP67
ItemPhotoelectric Sensor Co.
Item TypeGeneral purpose single .
Lens MaterialPMMA
Made in USANo
ManufacturerSchneider Electric
Materialplastic
Maximum Delay First Up60 ms
Maximum Delay Response25 ms
Maximum Operating Tempe.55 C
Maximum Power Consumpti.2 W AC/DC
Maximum Sensing Distance15 m polarised reflex
Measurement Range15 m
Minimum Operating Tempe.-25 C
Operating Temperature-25-55 A Degrees C
Output1 C/O;Discrete;Relay, r.
Output Typerelay
Product CertificationsUL || CSA || CE
Promotion RestrictionNot eligible for promot.
Sensing ModeDiffuse
Sensing Range11-11 M POLARISED REFLE.
Sensor Designcompact 92 x 71
SeriesXUX Series
Setting-Upsensitivity adjustment
Size3.03
Special Features1 LED yellow)output sta.
StandardIP67 DOUBLE INSULATION .
StandardsUL Listed, CSA Certified
Sub BrandOSISENSE
Supply Circuit TypeAC/DC
Supply Voltage24-240 VAC ; 12-240 VDC
Supply Voltage Limits20-264 V AC
Switching Current3 A
Switching Frequency<= 20 Hz
TechnologyPhotoelectric
TypeReflective Sensors
UPC785901582328
UPC Code785901582328
Voltage Rating24...240 V AC/DC
Warranty DescriptionContractual Warranty:18.
Wattage2 W AC/DC
Width31 mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0654011120.991In StockTelemecanique Sensors0.43120.99 @ 1
standardelectricsupply.com2212199128.01In StockTelemecanique128.0 @ 1
sustainablesupply.comC3048640133.671In StockTelemecanique Sensors0.43133.67 @ 1
thumbzoomTMEXUX9ARCNT16165.461In StockTELEMECANIQUE SENSORS165.46 @ 1
thumbzoomNewark89H7030178.491In StockTELEMECANIQUE SENSORS178.49 @ 1
us.rs-online.com70007427183.241In StockTelemecanique Sensors183.24 @ 1
RS Delivers695-6849222.32417Telemecanique Sensors222.324 @ 1
thumbzoomcrescentelectric.com204186242.391In StockTelemecanique242.39 @ 1
