mpn:
brand:
manufacturer:
MPN:
Description:

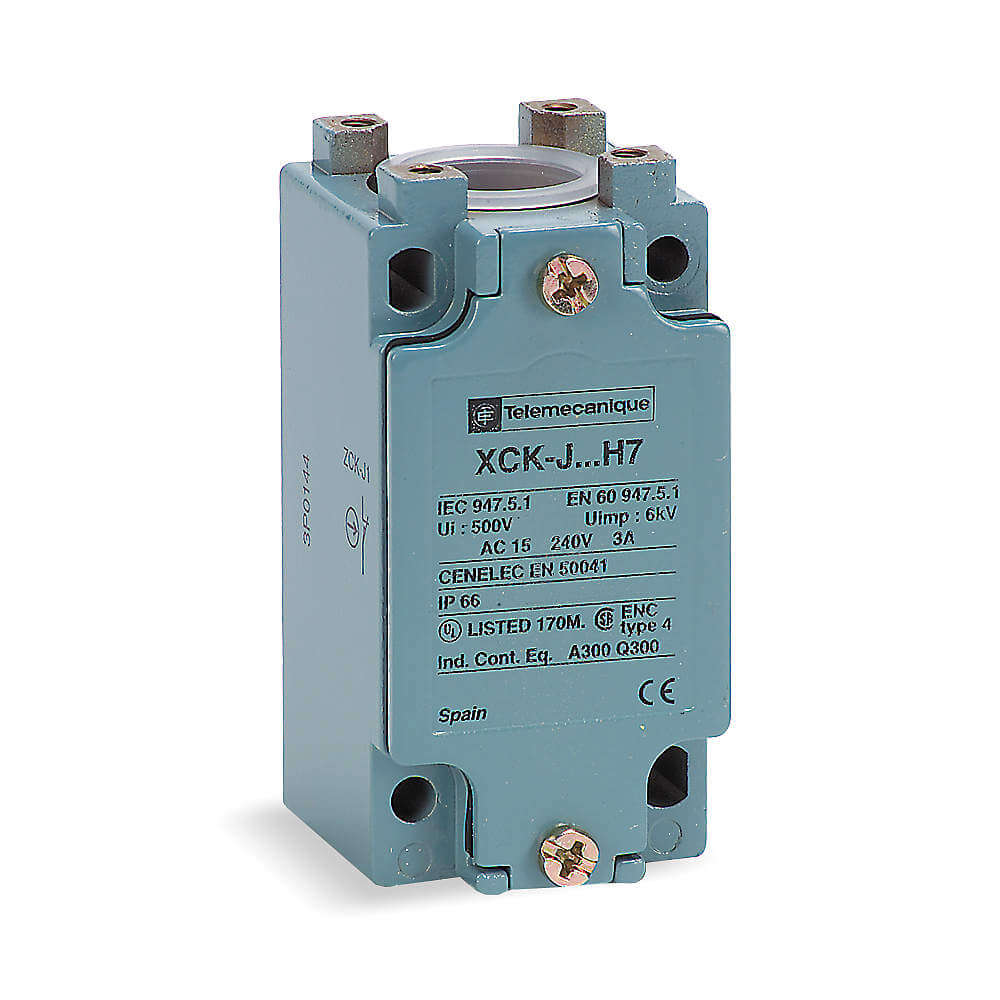

IP65 Snap Action Limit Switch Metal 2NO/2NC 240V
Weight:
0.0625625
Weight:
3.01 LB
Preferred Price:
173.0
Price:
173.0
Min Simple Price:
94.536
Absolute Min Price:
134.24
Min Price:
134.24
Dimensions:
[4.0, 2.0, 2.0]
qty:
21
simpleSku:
Dg2NTU:::ZCKJ2H7
sku:
Dg2NTU::WW:ZCKJ2H7@y0
condition:
11
seller:
RS Delivers
amzMan:
telemecanique sensors
HazMat:
False
DropShip:
True
Attributes
| Key ^ | Value |
|---|---|
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| [Ui] Rated Insulation Voltage | 500 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60664 || 6 kV IEC 60947-1 |
| AC Contact Rating | 10A @ 240V AC, 10 A @ 240V AC |
| Accessory Type, Detailed Description | Switch Body |
| Action, Contact Operation | snap action |
| Ambient Air Temperature For Operation | -40-70 ?C low temperature |
| Ambient Air Temperature For Storage | -40-70 ?C |
| Amperage Rating | 10 |
| Application, Product Compatibility, Series | XCKJ |
| Associated Head | ZCKE66 || ZCKE06 || ZCKE64 || ZCKE23 || ZCKE62 || ZCKE08 || ZCKE65 || ZCKE67 || ZCKE05 || ZCKE61 || ZCKE63 || ZCKE21 || ZCKE619 || ZCKE629 |
| Body Material | metal |
| Body Type, Special Features | fixed |
| Brand | Telemecanique |
| Cable Entry | 1 entry tapped for 1/2" NPT conduit |
| California Proposition 65 : WARNING: This product can expose you to chemicals including | Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Catalog Number, Manufacturer Product Number | ZCKJ2H7 |
| Category | Switches |
| Connection, Electrical Connection | screw-clamp terminals 1 x 0.75...2 x 1.5 mm? |
| Contact Configuration, Contacts Type And Composition | 2 C/O |
| Contact Form | 2NC/2NO, 2NO/2NC |
| Contacts Material | silver plated contacts |
| Country of Origin | ID - Indonesia, Indonesia |
| Depth | 60 mm |
| Description | LIMIT SWITCH BODY, LIMIT SWITCHE |
| Device Short Name, Sub Brand | ZCKJ |
| Digi-Key Part Number | 4008-ZCKJ2H7-ND |
| ECCN | EAR99 |
| Electrical Connection | Screw Terminal |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Enclosure, Ip Degree Of Protection | IP66 |
| Environmental Characteristic, Environmental Conditions | low temperature |
| Environmental Disclosure | ENVPEP110614EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| For Use With | XCKJ Series Limit Switches |
| For Use With/Related Products | XCKJ Series |
| GTIN | 03389110325454, 00785901466451 |
| Height | 102-102 mm |
| Ik Degree Of Protection | IK07 |
| IP Rating | 66 |
| Item, Item Type, Product Or Component Type, Product Type | limit switch body |
| Local Display, Positive Opening | without |
| Made in USA | No |
| Manufacturer Standard Lead Time | 1 Weeks |
| Manufacturer, Mfr | Schneider Electric |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
| Mercury Free, Rohs Exemption Information | Yes |
| Minimum Actuation Speed | 0.01 m/min |
| NEMA Rating | 1, 12, 2, 3, 4 |
| Net Weight | 0.455 kg |
| Number Of Poles, Number of Poles | 2 |
| Number Of Steps | 1 1 position |
| Operating Cycles | 5000000 CYCLES, DC-13 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Operating Temp. | -13 Degrees to 158 Degrees F |
| Operating Temperature | -40-70 A Degrees C LOW TEMPERATURE |
| Package | Box |
| Primary Type | Limit Bodies |
| Product Status | Active |
| Range Of Product | Telemecanique Limit switches XC Standard |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Series | -, ZCKJ Series |
| Series Name | standard format |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Size | 2.36 |
| Standard | IK07,IP66 |
| Standards | EN/IEC 60947-5-1 |
| Sustainable Offer Status | Green Premium product |
| Terminals Description Iso N?1 | (11-12)NC || (21-22)NC || (13-14)NO || (23-24)NO |
| UNSPSC | 39122213 |
| UPC, UPC Code | 785901466451 |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
| Warranty | 18 months |
| Warranty Description | Contractual Warranty:18 months |
| Width | 40 mm |
All Prices
| Img | Seller | Supplier SKU | Requested Price ^ | Calc MOQ Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|---|---|---|---|---|---|---|---|---|---|
 | mayerelectric.com | SQDZCKJ2H7 | 89.29 | 89.29 | 1 | In Stock | SQUARE D | 1.001 | 89.29 @ Qty: 1+ | |
 | kempstoncontrols.co.uk | ZCKJ2H7 | 94.103217 | 94.103217 | 1 | In Stock | Schneider | 94.103217 @ Qty: 1+ | ||
| RS Delivers | 700-4276 | 94.536 | 94.536 | 1 | In Stock | Telemecanique Sensors | 94.536 @ Qty: 1+ | |||
 | TME | ZCKJ2H7 | 105.29 | 105.29 | 1 | In Stock | TELEMECANIQUE SENSORS | 105.29 @ Qty: 1+ | ||
| Graybar | 22101811 | 106.064 | 106.064 | 1 | In Stock | Square D (Schneider Electric) | 106.064 @ Qty: 1+ | |||
 | Newark | 16B5363 | 106.3 | 106.3 | 1 | In Stock | TELEMECANIQUE SENSORS | 106.3 @ Qty: 1+ | ||
 | Digi-Key | 16399321 | 113.58 | 113.58 | 1 | 5 | Schneider Electric | 113.58 @ Qty: 1+ | ||
 | Zoro | G3073366 | 115.99 | 115.99 | 1 | 117 | Telemecanique Sensors | 0.7 | 115.99 @ Qty: 1+ | |
| AmazonTP | B01M1227WW | 116.88 | 116.88 | 1 | In Stock | 5 | Telemecanique Sensors | 116.88 @ Qty: 1+ | ||
| AmazonSC | B01M1227WW | 116.88 | 116.88 | 1 | In Stock | TELEMECANIQUE SENSORS | 116.88 @ Qty: 1+ | |||
 | gordonelectricsupply.com | ZCKJ2H7 | 117.59 | 117.59 | 1 | In Stock | 10 | SQUARE D | 117.59 @ Qty: 1+ | |
 | crescentelectric.com | 373555 | 131.15 | 131.15 | 1 | In Stock | Telemecanique | 131.15 @ Qty: 1+ | ||
 | National Supply Network | 69535276 | 133.12 | 133.12 | 1 | In Stock | Telemecanique Sensors | 133.12 @ Qty: 1+ | ||
| grainger.ca | TLQZCKJ2H7 | 147.85394026 | 147.85394026 | 1 | In Stock | SCHNEIDER ELECTRIC | 0.7 | 147.85394026 @ Qty: 1+ | ||
 | sustainablesupply.com | C1178701 | 149.35 | 149.35 | 1 | In Stock | Telemecanique Sensors | 0.7 | 149.35 @ Qty: 1+ | |
| us.rs-online.com | 70381023 | 166.38 | 166.38 | 1 | 3 | Telemecanique Sensors | 166.38 @ Qty: 1+ | |||
 | Raptor Supplies | AH2NRG | 213.4697175 | 213.4697175 | 1 | In Stock | TELEMECANIQUE SENSORS | 213.4697175 @ Qty: 1+ |
