Description:

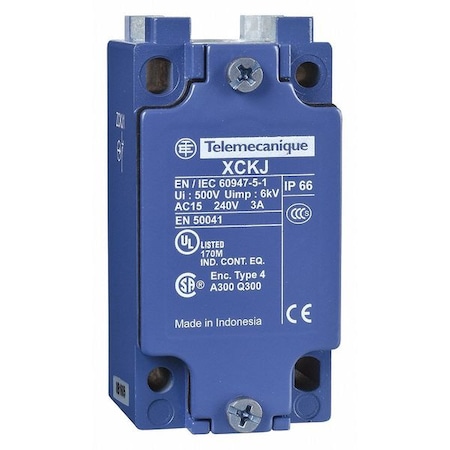

Limit Switch 240Vac 5A Metal Zck
Attributes
| Key | Value |
|---|---|
| [Ithe] Conventional Enclosed Thermal Current | 6 A |
| [Ui] Rated Insulation Voltage | 400 V 3)IEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block || 300 VUL 508 contact block |
| Ambient Air Temperature For Operation | -25-70?C standard environment |
| Ambient Air Temperature For Storage | -40-70?C |
| Associated Head | ZCKE62 || ZCKE63 || ZCKE23 || ZCKE619 || ZCKE61 || ZCKE629 || ZCKE66 || ZCKE08 || ZCKE21 || ZCKE67 || ZCKE05 || ZCKE64 || ZCKE65 || ZCKE06 |
| Body Material | metal |
| Contact Operation | snap action |
| Contacts Material | silver plated contacts |
| Contacts Type And Composition | 2 NC + 1 NO |
| Depth | 30 mm |
| Electrical Connection | screw-clamp terminals 1 x 0.34 to 2 x 0.75 mm? |
| Electrical Durability | 5000000 cycles, DC-13 120 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 13 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 9 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C |
| Environmental Characteristic | standard environment |
| Height | 72-72 mm |
| Ip Degree Of Protection | IP66 |
| Item | Limit Switch 240Vac 5A Metal Zck |
| Maximum Resistance Across Terminals | 0.25 mOhm IEC 60255-7 category 3 |
| Number Of Poles | 3 |
| Number Of Steps | 1 1 position |
| Positive Opening | with |
| Product Or Component Type | limit switch body |
| Promotion Restriction | Not eligible for promotion |
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Width | 52 mm |
