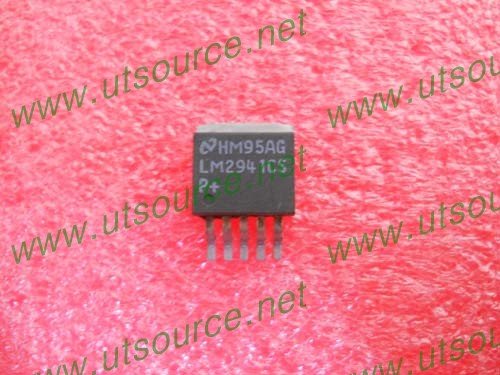

Texas Instruments LM2941CS

B00BVZL5NE

LM2941CS

LM2941CSzoom

Attributes

Key Value
Base Part NumberLM2941
Base Product NumberLM2941
CategoriesIntegrated Circuits (IC.
CategoryIntegrated Circuits (IC.
Control FeaturesEnable
Current - Output1A
Current - Quiescent (Iq) 10mA , 10 mA
Current - Supply (Max) 15mA , 15 mA
Lead Free Status / RoHS. Contains lead / RoHS n.
ManufacturerTexas Instruments
Manufacturer Part Number LM2941CS
MfrTexas Instruments
Moisture Sensitivity Le. 3 (168 Hours)
Mounting TypeSurface Mount
Number of Regulators1
Operating Temperature0?C ~ 125?C
Output ConfigurationPositive
Output TypeAdjustable
PackageTube
Package / CaseTO-263-6, D?Pak (5 Lead.
PackagingTube
Part StatusNot For New Designs
Product StatusNot For New Designs
Protection FeaturesOver Temperature, Rever.
PSRR-
Series-
Standard Package 45
Supplier Device PackageDDPAK/TO-263-5
Voltage - Input (Max)26V
Voltage - Output (Max)20V
Voltage - Output (Min/F.5V
Voltage Dropout (Max)1V @ 1A

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
iodPartsLM2941CS1.9111803240Texas Instruments1.911 @ 180
thumbzoomRadwellLM2941CS2.01149TEXAS INSTRUMENTS SEMI2.01 @ 1
HotendaH28005482.88134Texas Instruments2.88 @ 1
Digi-Key37013093.22131Texas Instruments3.22 @ 1
