| Brand | Texas Instruments |
| Dimensions | Dimensions |
| Height | Height |
| Length | 8.65mm |
| Logic Family | AC |
| Logic Function | Logic Function |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | Maximum Low Level Output Current |
| Maximum Operating Supply Voltage | Maximum Operating Supply Voltage |
| Maximum Operating Temperature | +85 ?C |
| Maximum Propagation Delay Time @ Maximum CL | 7.5 ns @ 5 V, 9 ns @ 3.3 V |
| Minimum Operating Supply Voltage | 2 V |
| Minimum Operating Temperature | -40 ?C |
| Mounting Type | Surface Mount |
| Number Of Elements | 4 |
| Number of Inputs per Gate | 2 |

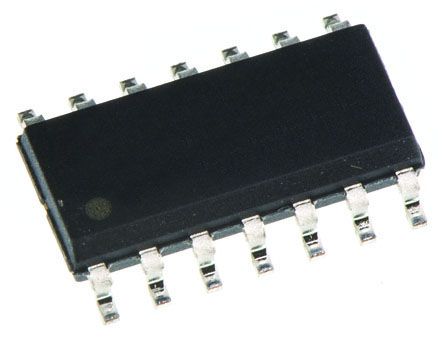

| Package Type | SOIC |
| Pin Count | Pin Count |
| Propagation Delay Test Condition | 50pF |
| Schmitt Trigger Input | No |
| Width | 3.91mm |
