SSU24OPN

B007IAO8UI

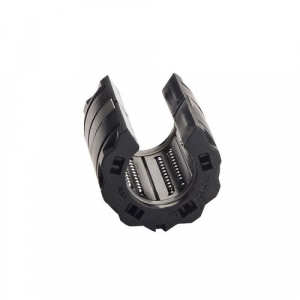

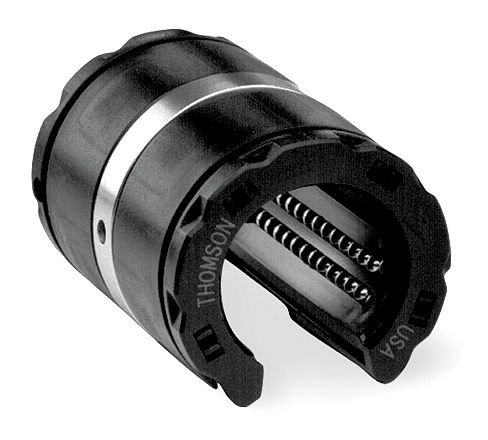

Thomson Ssu24opn Ball Bushing,bore Dia 1.500 In

Thomson Ssu24opn Ball Bushing,bore Dia 1.500 Inzoom

Attributes

Key Value
adjustable not adjustab.Adjustable
Adjustable/Not Adjustab.Adjustable
Between Grooves (mm)2.442 in
Bore Dia.1.5 in
closed openOpen
Closed/OpenOpen
Dimension C3 in
Dimension C12.442 in
Dimension F0.2 in
Dimension G0.190 in
Dimension T1.5
Dynamic Load Capacity (.3,880
food grade ratedNot Food Grade
Food Grade RatedNot Food Grade
For Use WithThomson Shafting
Inside Dia.1 1/2 in
Inside Dia. Tolerance+/-0.001
ItemLinear Ball Bearing
Length76.200 mm / 3 in
Length (In.)3 in
MaterialDelrin
Nominal Diameter38.100 mm / 1.5 in
nominal diameter38.100 mm / 1.5 in
outer diameter60.325 mm / 2.375 in
Outer Diameter60.325 mm / 2.375 in
Outside Dia.2.375 in
Required Housing Bore D.2.375 in
Retention Hole Dia. (mm)0.2 in
Retention Hole Location0.19 in
roll packNo Roll Pack
Roll PackNo Roll Pack
Self AlignmentSelf-aligning
self alignmentSelf-aligning
Self-AlignmentYes
single twinSingle
Single/TwinSingle
Slot Angle (Degrees)30
Slot Width (In.)0.74 in
Steady State Speed10 fps
Temp. Range (F)0 a 185
temperature max85 ?C / 185 ?F
Temperature Max85 ?C / 185 ?F
TypeOpen
typeBushing Only Open
use with shafting classL
Use with shafting classL
Weight0.363 kg / 0.8 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG0573535156.991In Stock11Thomson0.8156.99 @ 1
thumbzoomMRO Supply1815775160.171In StockThomson Linear160.17 @ 1
thumbzoomcbtcompany.comSSU24OPN198.051In StockThomson Industries198.05 @ 1
thumbzoomNational Supply Network35528264209.841In StockThomson Industries209.84 @ 1
thumbzoomprimebuy.comSSU24OPN210.31In StockThomson Industries0.363210.3 @ 1
thumbzoomsustainablesupply.comC1674090229.191In StockThomson0.8229.19 @ 1
thumbzoomGuardian35528264242.81In StockThomson Industries242.8 @ 1
thumbzoombscsource.comSSU24OPN250.591In StockThomson Industries250.59 @ 1
motionindustries.com00032840264.971In StockThomson264.97 @ 1
