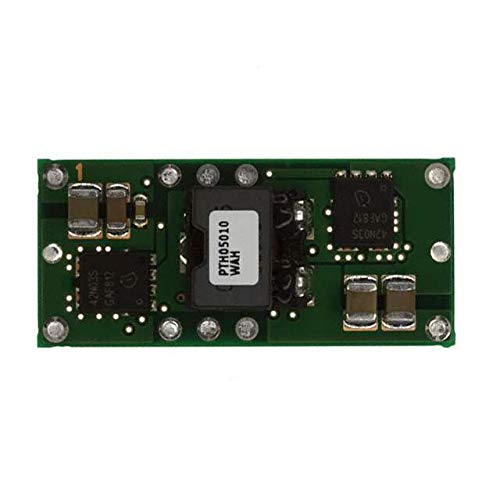

Texas Instruments PTH05010WAH

B017HUA1YK

PTH05010WAH

PTH05010WAHzoom

Attributes

Key Value
Alternate Part No.595-PTH05010WAH
ApplicationsITE (Commercial)
Base Product NumberPTH05010
BrandTexas Instruments
CategoryPower Supplies - Board .
Current - Output (Max)15A
DescriptionDC DC CONVERTER 0.8-3.6.
Detailed DescriptionNon-Isolated PoL Module.
Digi-Key Part Number296-20402-ND
Efficiency95%
Factory Pack Quantity25
Features-
In-stock0
Input Voltage Range4.5 V to 5.5 V
ManufacturerTexas Instruments
Manufacturer Part No.PTH05010WAH
Manufacturer Product Nu.PTH05010WAH
Manufacturer Standard L.12 Weeks
MfrTexas Instruments
Mounting StyleThrough Hole
Mounting TypeThrough Hole
Number of Outputs1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current (Channel.15 A
Output Current-Channel 115 A
Output Voltage-Channel 13.6 V
PackageTray
Package / Case10-DIP Module
Package / Case SizeThrough Hole Module
Package/CaseDIP-10
Package/Case SizeThrough Hole Module
PackagingTube, Tray
ProductNon-Isolated / POL
Product CategoriesDC/DC Switching Convert.
Product CategoryNon-Isolated DC/DC Conv.
Product StatusActive
RoHs StatusLead free/RoHS Compliant
SeriesPTH05010W
Size / Dimension1.37" L x 0.62" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)5.5V
Voltage - Input (Min)4.5V
Voltage - Output 10.8 ~ 3.6V
Voltage - Output 2-
Voltage - Output 3-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Freelance ElectronicsPTH05010WAH7.01In StockTexas Instruments7.0 @ 1
Newark73H431522.5625In StockTEXAS INSTRUMENTS22.56 @ 25
thumbzoomDigi-Key56642130.9612324Texas Instruments30.96 @ 1
thumbzoomswatee.comPTH05010WAH31.37111Texas Instruments31.37 @ 1
AmazonTPB017HUA1YK40.331In Stock5Texas Instruments40.33 @ 1
