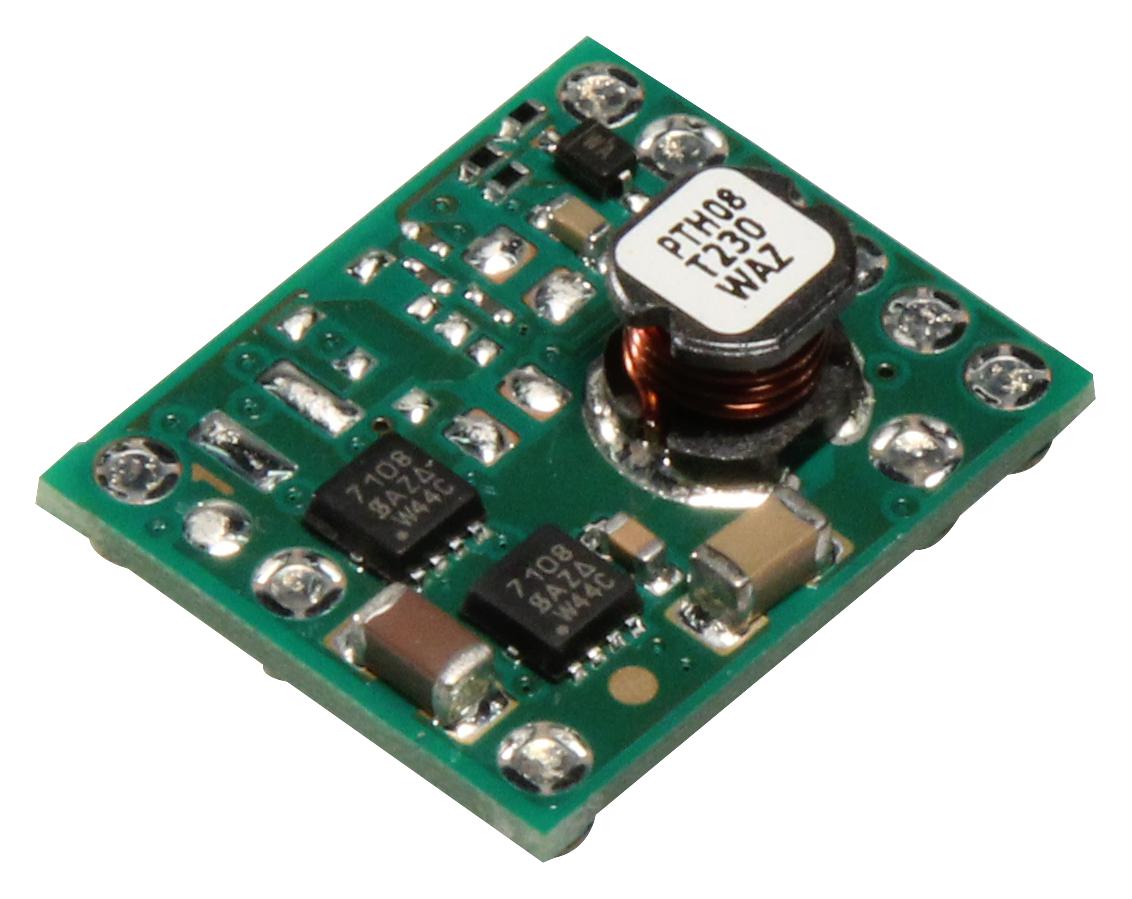

Texas Instruments PTH08T230WAZ

B010O055DW

PTH08T230WAZ

PTH08T230WAZzoom

Attributes

Key Value
ApplicationsITE (Commercial)
Base Product NumberPTH08
BrandTexas Instruments
CategoryPower Supplies - Board .
Current - Output (Max)6A
Dimensions18.92 x 15.75 x 7.5mm
Efficiency95%
Factory Pack Quantity36
FeaturesRemote On/Off, OCP, OTP.
Height7.5mm
In-stock0
Length18.92mm
Maximum Input Voltage14 V
Maximum Operating Tempe.+85 ?C
MfrTexas Instruments
Minimum Input Voltage4.5 V
Minimum Operating Tempe.-40 ?C
Mounting StyleSMD/SMT
Mounting TypeThrough Hole, Surface M.
Number of Outputs1
Operating Temperature-40?C ~ 85?C
Operating Temperature R.- 40 C to + 85 C
Output Current (Channel.6 A
PackageTray
Package / Case10-SMD Module
Package / Case SizeSurface Mount Module
Package TypeDIP Module
Package/CaseDIP-10
PackagingTube
Pin Count10
Product CategoriesDC/DC Switching Convert.
Product StatusActive
RoHs StatusRohs
SeriesPTH08T230W
Size / Dimension0.75" L x 0.62" W x 0.3.
TypeNon-Isolated PoL Module
Voltage - Input (Max)14V
Voltage - Input (Min)4.5V
Voltage - Output 10.69 ~ 5.5V
Voltage - Output 2-
Voltage - Output 3-
Width15.75mm

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomRS Delivers661-797614.74816Texas Instruments14.748 @ 6
Digi-Key113365515.7816Texas Instruments15.78 @ 6
thumbzoomRadwellPTH08T230WAZ22.4816TEXAS INSTRUMENTS SEMI3.022.48 @ 6
thumbzoomNewark29AH719222.6116TEXAS INSTRUMENTS22.61 @ 6
