TIMKEN YCJT 15/16 SGT

B00460FHSK

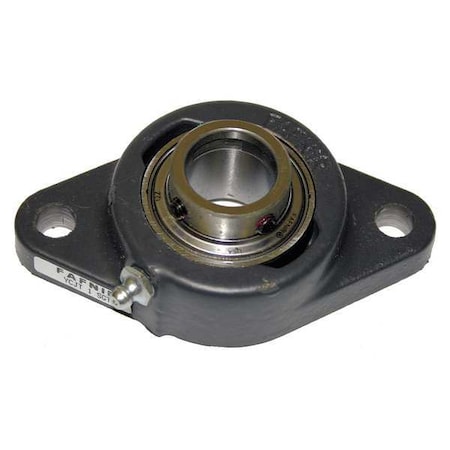

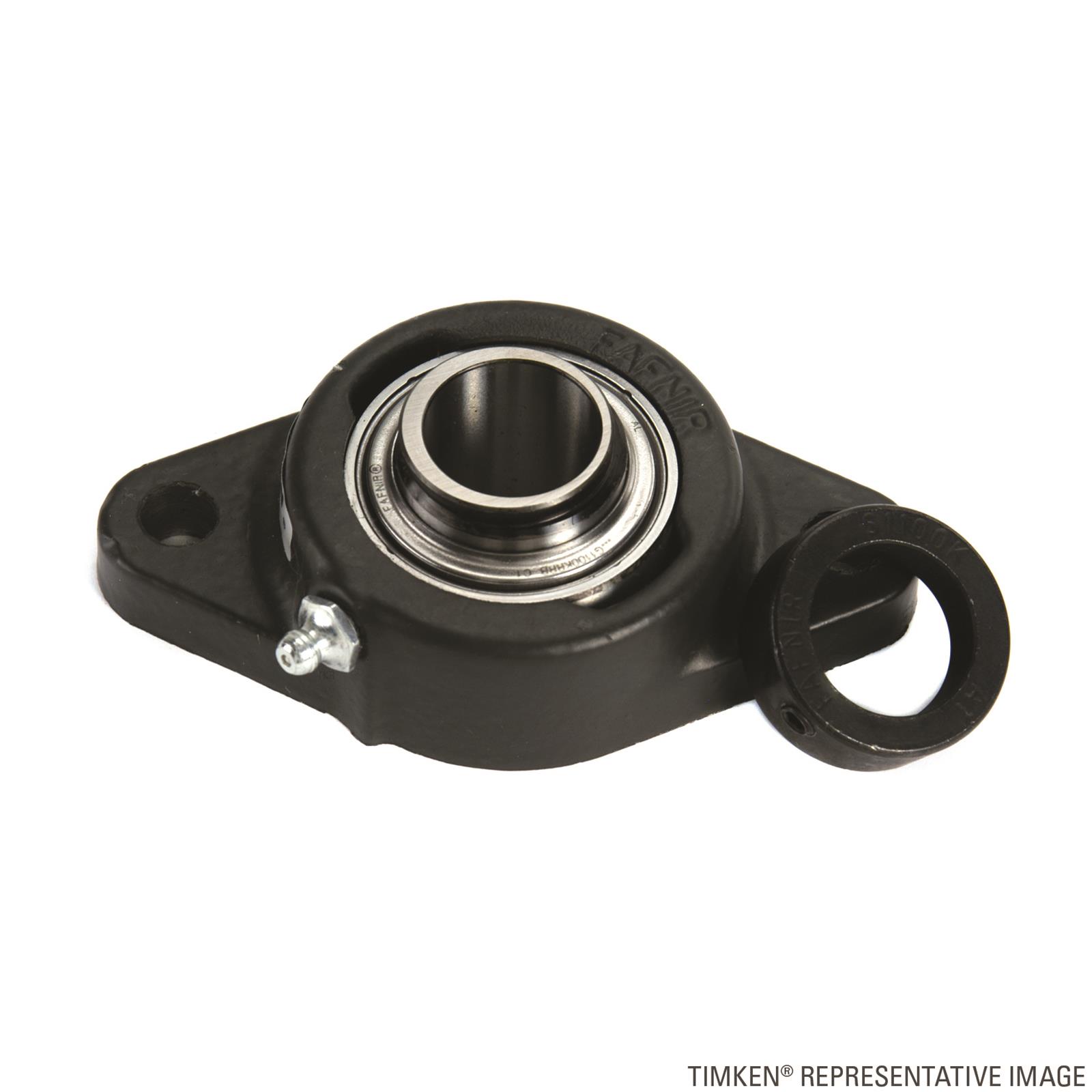

Housed Ball Bearing

Housed Ball Bearingzoom

Attributes

Key Value
Bearing Housing Materia.Cast Iron
Bearing Insert Material52100 Chrome Steel
Bearing Insert TypeBall
Bearing LubricationMobil Polyrex EM or NLG.
Bolt Center-to-Center L.3-29/32 in
Bolt Hole Center-to-Cen.3 29/32 in
Bolt Size7/16 in
Bore3.906 Inch | 99.2 Milli.
Bore Dia.15/16 in
Bore Diameter15/16 in
BrandTIMKEN
Cartridge Pilot Depth0.938 Inch | 23.825 Mil.
Cartridge Pilot Diameter3.9 Inch | 99 Millimeter
Category - BDI31171501
Description:Ball Flange Unit
Dimension A1 11/16 in
Dimension B2 1/32 in
Dimension E2 25/64 in
Dimension F2 13/32 in
Dimension H7 7/16 in
Dimension J6 3/16 in
Dimension L4 9/16 in
Dimension N43/64 in
Dynamic Load Capacity3,550 lb
EANM06110
Expansion / Non-expansi.29/64 Inch
FinishUncoated, Powder Coated
Flange Mounting Type2-Bolt
Harmonized Tariff CodeBearing
Housing ConfigurationNo Pilot
Housing MaterialNon-expansion
Housing StyleBall Bearing
Inch - MetricSingle Row | Normal Dut.
Inner Ring Width1.372 in
Insert Part NumberDouble Land Riding Rubb.
Item2-Bolt Flange Bearing
Keyword StringYCJT 15/16 SGT
Length Thru Bore0 Inch | 0 Millimeter
Load Capacity3550 lb Dynamic/1730 lb.
Locking DeviceSet Screw
Long Description1.344 Inch | 34.13 Mill.
ManufacturerTIMKEN CO
Manufacturer Item Number2 Bolt Flange Block; 15.
Manufacturer NameN/A
Manufacturer URL1.793
Manufacturer's Part.YCJT 15/16 SGT
Maximum Speed3000 rpm
MFG Part #:YCJT 15/16 SGT
Minimum Buy Quantity0.81
Mount Hole Center-to-Ce.3 57/64 in
Mount Hole Size0.453 in
Mounted Bearing Item2-Bolt Flange Bearing
Mounting Bolt Size7/16 in
Mounting BoltsYes
Mounting Method2 Bolt Flange Block
NounFlanged
Number of Mounting HolesSet Screw
Other FeaturesFlange Block
Overall Depth1.575 in
Overall Height2-3/4 in, 4 7/8 in
Overall Length2 3/4 in
Overall Length/Diameter4-7/8 in
Overall Width1 1/2 in
Part TypeAxle Bearings
Pilot ConfigurationInch
Product Group - BDI2
RelubricatableGY1015KRRB
Rolling ElementCast Iron
Seals1 Piece Solid
SeriesYCJT
Shaft Locking TypeSet Screws, Set Screw
Static Load Capacity1,730 lb
Summit Racing Part Numb.TMK-YCJT1516SGT
Supplier:TIMKEN CO
Temp. Range-65 Degrees to 200 Deg.
Temperature Rating-30 to 275 deg F
TypeIndustrial Normal Duty
UNSPSC8483.20.40.40
UPC087796266100
UPC:087796266100
Weight / Kilogram0087796266100
Weight / LBS0 Inch | 0 Millimeter

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomBDI ExpressYCJT 15/16 SGT68.3199951212TIMKEN1.78268.31999512 @ 1
thumbzoomSummit RacingTMK-YCJT1516SGT74.991In StockTimken74.99 @ 1
thumbzoomMRO Supply511392875.241In Stock14Timken1.7375.24 @ 1
thumbzoomapexindustrialautomation.comYCJT 15/16 SGT85.94155Timken85.94 @ 1
thumbzoomFinditParts159963698.431In StockTIMKEN98.43 @ 1
thumbzoomZoroG7815832104.351In Stock15Timken1.73104.35 @ 1
motionindustries.com00564327117.461In StockTimken (Fafnir)117.46 @ 1
kscdirect.comTIM YCJT 15/16 SGT123.751In StockTIMKEN CO123.75 @ 1
Grainger46R685151.021In StockTIMKEN151.02 @ 1
