Tjernlund HS2

B003UPYLHU

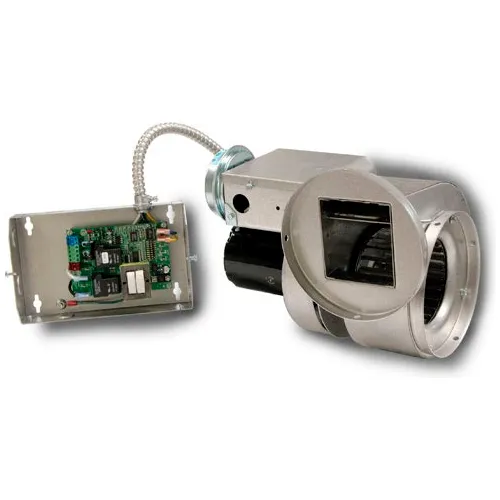

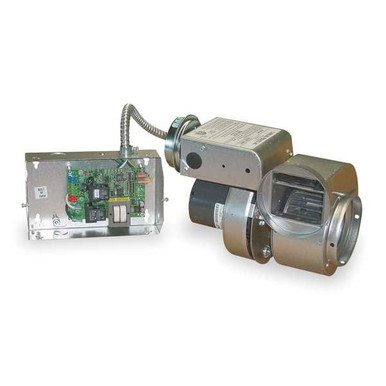

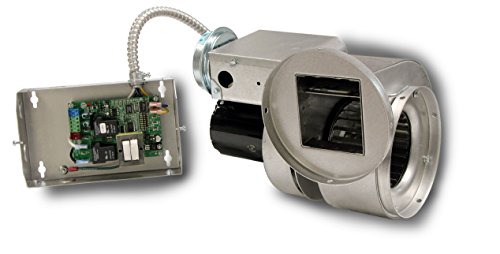

Tjernlund HS2 Gas Sidewall Power Venter Fan

Tjernlund HS2 Gas Sidewall Power Venter Fanzoom

Attributes

Key Value
Agency ComplianceETL Listed to UL378 and.
Airflow @ 0.000 in SP286 cfm
Airflow at Temperature158 cfm @ 70 Degrees F,.
Amps1.51A
ApplicationBoilers, Water Heaters,.
BearingsSleeve
Blower TypeSidewall Power Venter
BrandTjernlund Products
BtuH Input300-450
CFM @ 0.000-In. SP280 280 280 280
CFM @ 0.500-In. SP235 220 215 200
CFM @ 0.700-In. SP220 190 185 165
CFM @ 1.000-In. SP200 150 120 -
CFM @ 1.40-In. SP150 - - -
CFM @ 270 Deg. (F)-
CFM @ 390 Deg. (F)-
CFM @ 530 Deg. (F)-
Class1
Construction MaterialSintered Iron
Country of Origin (subj.United States
Current1.51 A
Current Stock97
Cut Out Required-
Date First AvailableJuly 3, 2010
Depth (In.)8 1/2 in
Duct Temp. Deg. (F)70,300,400,500
EnclosureOpen
For Appliance TypeBoilers, Furnaces, Unit.
For Fuel TypeLP, Natural Gas, Oil
For Maximum Pipe Length100 ft
For Pipe Diameter6 in to 8 in
GTIN080956212047
Heater Btu Input @ 270 .Not Applicable
Heater Btu Input @ 390 .Not Applicable
Heater Btu Input @ 530 .Not Applicable
Height (In.)9 1/4 in
Housing MaterialSteel
Housing Material FinishAluminum Plated
IncludesAdjustable Damper, Fan .
Includes MotorYes
Inlet and Outlet Dia. (.6"
Inlet Diameter6 in
International ShippingNo
Is Discontinued By Manu.No
ItemInduced Draft Blower
Item model numberHS2
Lead TimeExpected to ship in 1-2.
ManufacturerTjernlund Products
MarketCommercial, Residential
Max. Pipe Length 300-
Max. Pipe Length 400-
Max. Pipe Length 500-
Maximum Heat Input500 MBtuH
Maximum Heater BTU Inpu.600,000 BtuH
Maximum Heater BTU Inpu.450,000 BtuH
Maximum Motor Speed3,300 RPM
Maximum Static Pressure1 3/8 in wc
Maximum Vent Pipe Diame.8 in
Minimum Vent Pipe Diame.6 in
Motor TypePermanent Split Capacit.
Mounting LocationSidewall
MpnHS2
Nameplate Voltage115V AC
Nominal Voltage115V AC
Outlet Diameter6 in
Outlet HeightNot Applicable
Outlet ShapeRound
Outlet WidthNot Applicable
Overall Depth11 in
Overall Height9 1/4 in
Overall HxWxD9 1/4 in x 11 5/8 in x .
Overall Width11 5/8 in
Overload ProtectionThermal
Power Consumption224 W
Product Dimensions16.9 x 11.7 x 12 inches.
Product with faster shi.true
RemarksView Catalog Page for S.
Replaces-
RPM3300
Shippingundefined (Fixed Shippi.
SKUZO-G0975317
SP @ 270 Deg. (F)Not Applicable
SP @ 390 Deg. (F)Not Applicable
SP @ 530 Deg. (F)Not Applicable
StandardscETL Listed
TypeHigh Temperature
UPC080956212047
Vent Pipe Dia. (In.)6" or 8"
Voltage115V
Watts224 W
Width (In.)11 1/2 in
