| Application | Air |
| Compatible Tube Material | Nylon |
| Connection Type | Compression x Compression |
| Connection, End Connection Type, Fitting Side A Connection Type, Fitting Side B Connection Type, Type | Compression |
| Country of Origin (subject to change) | United States |
| Fitting Body Material, Fitting Material, Material | Brass |
| Fitting Shape | Elbow |
| Fitting Side A Tube Outer Diameter, Fitting Side B Tube Outer Diameter, For Tube Outside Diameter, Tube Size | 3/8 in |
| For Tube OD | 3/8 in x 3/8 in |
| For Use With | Nylon Tube Airbrake |

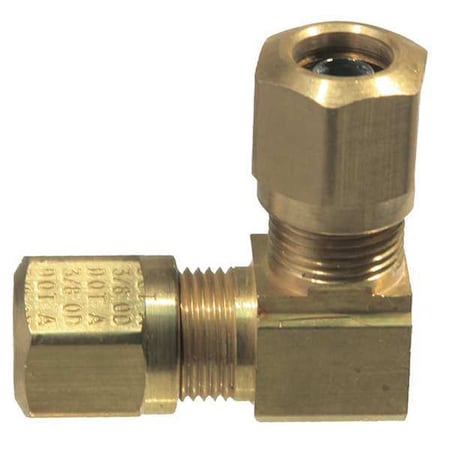

| Item | Union Elbow |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 200 Degrees F |
| Minimum Operating Temperature | 40 Degrees F |
| Pressure (PSI) | 150 |
| Specific Fitting Shape | 90 Degrees Elbow |
| Standards | SAE J246 |
| Sub-Category | Elbows |
| System of Measurement | Imperial |
| Temp. Range | -65 Degrees to 250 Degrees F |
| Thread Size, Thread Size B, Threading Size | 17/32-24 |
