mpn:
brand:
manufacturer:
MPN:
Description:

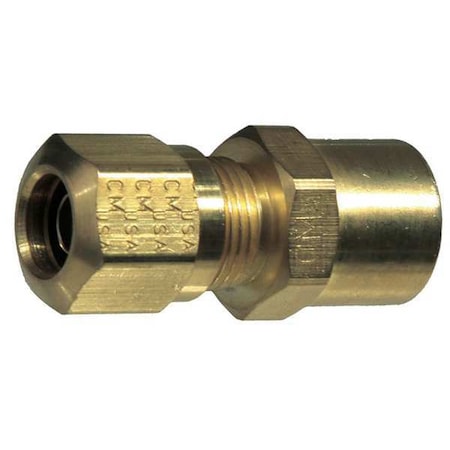

Female Connector, Application Air, Fitting Side A Connection Type Compression, Fitting Side B Connection Type FNPT, Fitting Material Brass, Fitting Side A Tube Outer Diameter 3/8 in, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 3/16 in, Specific Fitting Shape Straight Adapter, Fitting Side B Pipe Size 1/4 in, Thread Size B 1/4-18, System of Measurement Imperial, Standards SAE J246, Compatible Tube Material Nylon
Attributes
| Key ^ | Value |
|---|---|
| Application | Air |
| Compatible Tube Material | Nylon |
| Connection | Compression x Pipe |
| Fitting Pipe Size, Fitting Side B Pipe Size, Pipe Size | 1/4 in |
| Fitting Side A Tube Outer Diameter, For Tube Outside Diameter, Tube Size | 3/8 in |
| For Use With | Nylon Tube Airbrake |
| Item | Female Connector |
| Length | 1.19 in |
| Material | Brass |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 200 Degrees F |
| Overall Length | 1 3/16 in |
| Pressure (PSI) | 150 |
| Standards | SAE J246 |
| Sub-Category | Connectors |
| Temp. Range | -65 Degrees to 250 Degrees F |
| Thread Size, Thread Size B, Threading Size | 1/4-18 |
| Type | Compression |
