mpn:
brand:
manufacturer:
MPN:
Weight:
0.01875
Weight:
0.01875 LB
Preferred Price:
32.98
Price:
32.98
Min Simple Price:
15.2
Absolute Min Price:
21.75
Min Price:
21.75
Dimensions:
[6.0, 4.0, 1.0]
qty:
21
simpleSku:
Tg1NTQ:::974-6
sku:
Tg1NTQ::ZC:974-6@y0
condition:
11
seller:
Grainger
amzMan:
tramec sloan
HazMat:
False
DropShip:
False
Attributes
| Key ^ | Value |
|---|---|
| Application | Air |
| Compatible Tube Material | Nylon |
| Connection Type | Compression x Compression |
| Connection, End Connection Type, Fitting Side A Connection Type, Fitting Side B Connection Type, Type | Compression |
| Country of Origin (subject to change) | United States |
| Fitting Body Material, Fitting Material, Material | Brass |
| Fitting Shape | Union |
| Fitting Side A Tube Outer Diameter, Fitting Side B Tube Outer Diameter, For Tube Outside Diameter, Tube Size | 3/8 in |
| For Tube OD | 3/8 in x 3/8 in |
| For Use With | Nylon Tube Airbrake |

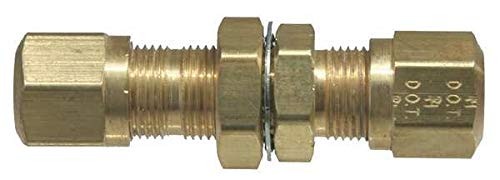

| Item | Bulkhead Union |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 200 Degrees F |
| Minimum Operating Temperature | 40 Degrees F |
| Pipe Size | 1/4 in |
| Pressure (PSI) | 150 |
| Specific Fitting Shape | Straight Bulkhead Union |
| Standards | SAE J246 |
| Sub-Category | Tees |
| System of Measurement | Imperial |
| Temp. Range | -65 Degrees to 250 Degrees F |
| Thread Size, Thread Size B, Threading Size | 1/4-18 |
