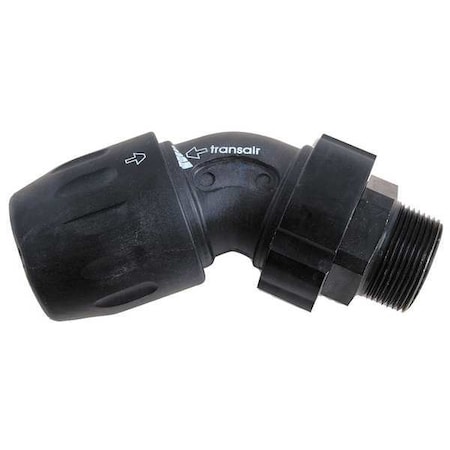

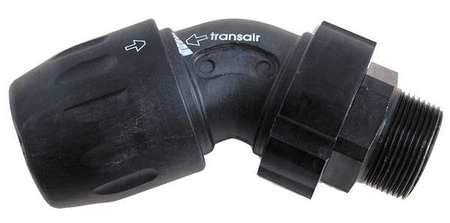

TRANSAIR 66194044GR

Fitting,Elbow,for 38.10mm

mpn 6619 40 44GR
brand name: TRANSAIR
manufacturer name: TRANSAIR

Brand: TRANSAIR
PartNumber: 66194044GR
Model: 6619 40 44GR
PackageQuantity: 1
Manufacturer: TRANSAIR
Label: TRANSAIR

Attributes

Key	Value
Basic Material	Brass
Basic Pipe Fitting Material	Metal
Basic Pipe Fitting Shape	Elbow
Color	Black
Compatible Tube Material	Aluminum
Compliance	UL94HB, UL94V-2
Connection Type	Push-to-Connect x MNPT
Country of Origin (subject to change)	France
Dia./Thread Size	2"
End Connection Type	Push-to-Connect, Threaded
Fitting Body Material	Polyamide
Fitting Material	Polyamide
Fitting Pipe Size	2 in
Fitting Shape	Elbow
Fitting Side A Connection Type	Push-to-Connect
Fitting Side A Tube Outer Diameter	1 1/2 in
Fitting Side B Connection Type	MNPT
Fitting Side B Pipe Size	2 in
Fitting Size (NPT)	2 in
For Tube OD	1 1/2 in
For Tube Outside Diameter	1 1/2 in
For Tubing O.D. 1	40 mm
For Use With	Use with Compressed Air, Vacuum, Inert Gas; Use with Push-to-Connect Style, Aluminum Tubing Fittings
Green Environmental Attribute	100% Recyclable
Includes Pre-Applied Thread Sealant	No
Industry Type	Automotive Assembly; Food & Beverage; Packaging; Industrial Plants; Aerospace
Item	Fitting
Material	Treated Brass/Polyamide
Max. Pressure	232 psi
Max. Temp.	140 Degrees F
Maximum Operating Pressure	232 psi
Maximum Operating Temperature	140 Degrees F
Minimum Operating Temperature	4 Degrees F
Overall Length	3 11/16 in
Pipe Fitting Connection Type	Coupler x Male NPT
Pipe Size (Fittings)	2"
Release Ring Material	Stainless Steel
Release Type	Ring
Resistance Properties	Chemical-Resistant, Corrosion-Resistant
Special Features	Quick Connection Technology; Modular and Reusable; No Corrosion; Full-Bore Design; Lower Installation Costs; Optimum Flow Rate; Leak-free Guarantee; Immediate Pressurization; Lightweight; Easy to.
Specific Fitting Shape	45 Degrees Elbow Adapter
Specific Pipe Fitting Shape	Elbow
Standards	EN 755.2, EN 755.8, EN 573.3, ISO 9001, ASME B31.1 - 31.9, ISO 8573 (Air Quality), TUV Certification, CE Conformity
System of Measurement	Imperial
Temp. Range	-4 Degrees to 140 Degrees F
Tube Outside Dia.	1-1/2"
Tube Size	1-1/2"
Type	Elbow
Vacuum Rating	0.03 inHg

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Zoro	G6150417	216.94	1	In Stock		Transair	1.95	216.94 @ 1
