Description:

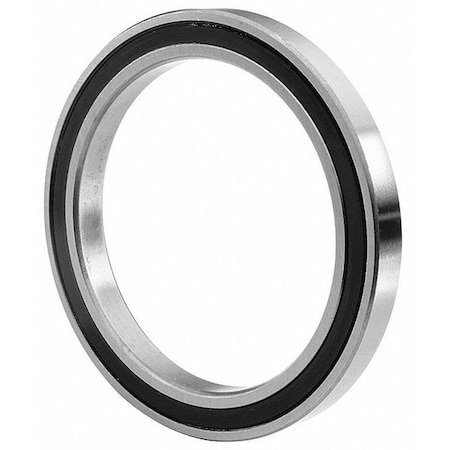

Radial Ball Bearing, Bearing Industry Number 61800, Bore Diameter 10 mm, Closure Double Sealed, For Environment Oily/Greasy, Outer Ring Width 5 mm, Outside Diameter 19 mm, Ring Material Alloy Steel, Seal Type Contact, System of Measurement Metric, Cage Material Steel, ABEC Rating 1, Ball Material Alloy Steel, Ball Material Grade AISI 52100, Bore Diameter Tolerance +0/-0.008 mm, Dynamic Radial Load Capacity 410 lbf, Includes Retaining Ring No, Lubricant Material Polyrex EM
Attributes
| Key ^ | Value |
|---|---|
| ABEC Tolerance | 1 |
| Bearing Material | 52100 Steel |
| Bearing Type, Seal/Shield Type | Double Sealed |
| Bore Dia. | 10mm |
| Bore Diameter | 10 mm |
| Bore Diameter Tolerance | +0/-0.008 mm |
| Bore Tolerance | +0/-0.008mm |
| Cage Material | Steel |
| Dynamic Load Capacity | 410 lb |
| Item | Radial Ball Bearing |
| Lubrication | NLGI Grade 2 Multipurpose Lithium Soap Based Bearing Grease |
| Max. RPM | 22,000 RPM |
| Outer Ring Width | 5 mm |
| Outside Dia. | 19mm |
| Outside Dia. Tolerance | +0/-0.009mm |
| Outside Diameter | 19 mm |
| Outside Diameter Tolerance | +0/-0.009 mm |
| Retaining Ring Diameter | Not Applicable |
| Seal Material | Rubber |
| Single Row/Double Row | Single Row |
| Static Load Capacity | 208 lb |
| Temp. Range | -20 to +212? F |
| Width | 5mm |
