Description:

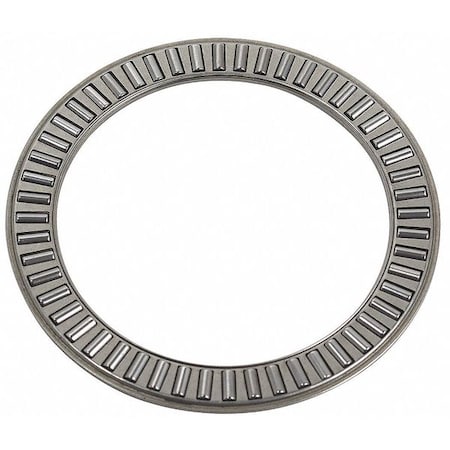

Needle Roller Thrust Bearing, Bearing Industry Number 411, Bearing Design NTA, TC, Bore Diameter 1/4 in, Cage Material Alloy Steel, Compatible Washer TRA-411, TRB-411, TRC-411, Lubricant Material Oil, Maximum Speed 26,000 RPM, Maximum Temperature 250 Degrees F, Minimum Temperature -5 Degrees F, Outside Diameter 11/16 in, Overall Width 0.078 in, Roller Material Alloy Steel, System of Measurement Inch, Thrust Bearing Type Thrust Needle Roller and Cage Assembly
Attributes
| Key ^ | Value |
|---|---|
| Bore Dia. (In.) | 0.25" |
| Bore Dia. (mm) | 6.4 mm |
| Bore Diameter | 1/4 in |
| Cage Material, Material | Steel |
| Compatible Washer | TRA-411, TRB-411, TRC-411 |
| Dynamic Load Capacity (Lb.) | 1150 |
| Dynamic Load Capacity (N) | 4,940 N |
| Height (In.), Overall Width | 0.078 in |
| Height (mm) | 1.98 mm |
| Item | Needle Roller Thrust Bearing |
| Lubrication | Light Oil Preservative |
| Max. RPM | 25,100 RPM |
| Minimum Temperature | -5 Degrees F |
| Outside Dia. (In.) | 0.687" |
| Outside Dia. (mm) | 17.5 mm |
| Outside Diameter | 11/16 in |
| Roller Material | Alloy Steel |
| Static Load Capacity (Lb.) | 2420 |
| Static Load Capacity (N) | 10,390 N |
| Temp. Range (F) | -25 to +225? F |
| Thrust Bearing Type | Thrust Needle Roller and Cage Assembly |
| Type | Needle Roller |
