- mpnUCFL204-12
- brandname: Tritan
- manufacturername: Tritan

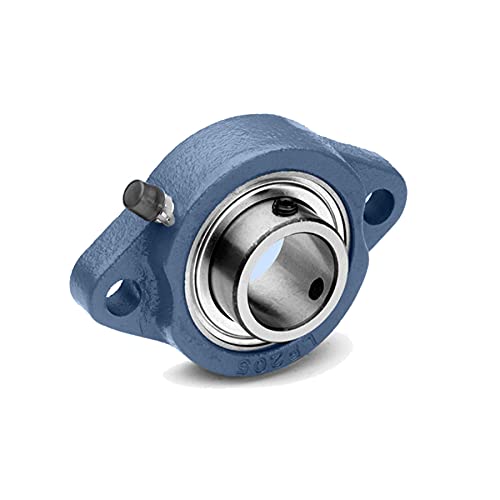

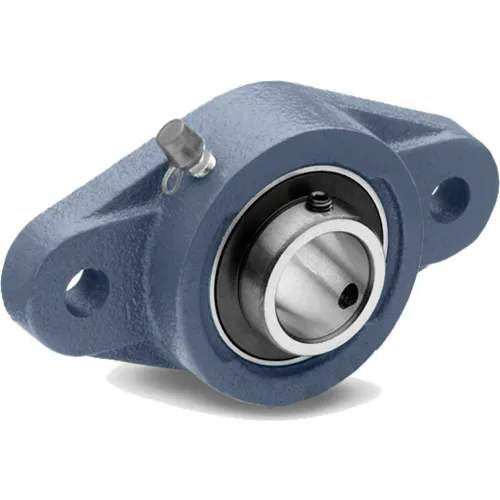

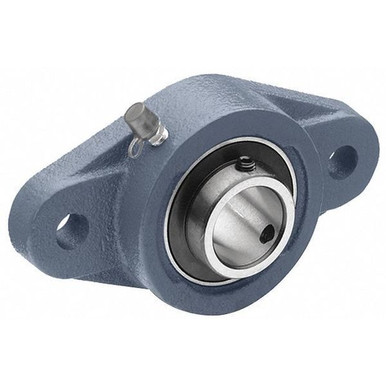

Flange Bearing, 2-Bolt, Ball, 3/4" Bore
- Brand: Tritan
- PartNumber: UCFL204-12
- Model: UCFL204-12
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: TRITAN
- Label: TRITAN
Attributes
| Key | Value |
|---|
| Bearing Housing Materia. | Cast Iron |
| Bearing Insert Material | 52100 Steel, Alloy Steel |
| Bearing Insert Type | Ball, Radial Ball |
| Bearing Lubrication | Shell Alvania RL2 or NL. |
| Bearing Material Grade | 52100 |
| Bolt Hole Center-to-Cen. | 3.5433" |
| Bolt Size | 3/8 in |
| Bore Dia. | 0.75" |
| Bore Diameter | 3/4 in |
| Bore Type | Cylindrical |
| Brand | Tritan |
| Closure | Double Sealed |
| Color | Grey |
| Current Stock | 797 |
| Dynamic Load Capacity | 2,877.55 lbf, 2827 Lbf |
| Features | Anti-Rotation Device, C. |
| Finish | Painted |
| Flange Thickness | 0.593 in |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Housing Type | Rhombus |
| Included Bearing | UC204-12 |
| International Shipping | No |
| Item | 2 Bolt Flange Bearing, . |
| Lead Time | Expected to ship in 1-2. |
| Locking Type | Set Screw |
| Lubricant Material | NLGI #2 Equivalent |
| Lubrication Openings | One Zirc Fitting |
| Maximum Temperature | 250 Degrees F |
| Minimum Temperature | -40 Degrees F |
| Mount Hole Center-to-Ce. | 3 35/64 in, 3.546 in |
| Mount Hole Size | 7/16 in |
| Mounting Bolt Size | 3/8 in |
| Mpn | UCFL204-12 |
| Number of Mount Holes | 2 |
| Overall Height | 33.3 mm, 1.312 in |
| Overall Length | 113 mm, 4.437 in |
| Overall Width | 2.375 in, 60 mm |
| Rolling Element Rows | 1 |
| Seal Material | Rubber |
| Series | UCFL |
| Shaft Locking Type | Set Screw, Set Screws |
| SKU | ZO-G0317497 |
| Standards | ISO, AFBMA, AFBMA, ISO |
| Static Load Capacity | 1495 Lbf |
| Static Radial Load Capa. | 1,494.98 lbf |
| SubCategory | Power Transmission |
| System of Measurement | Inch |
| Temp. Range | -4 to +248? F |
| UPC | 888569051240 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G0317497 | 13.75 | 1 | 914 | | Tritan | 0.94 | 13.75 @ 1 |
| AmazonTP | B01M0GJKHP | 19.87 | 1 | In Stock | 2 | Tritan | | 19.87 @ 1 |
 | simsupply.com | ZO-G0317497 | 22.25 | 1 | 797 | | Tritan | | 22.25 @ 1 |
 | Global Industrial | WBB1873356 | 24.34 | 1 | In Stock | | Tritan | | 24.34 @ 1 |
| grainger.ca | WWG36UY64 | 24.73546848 | 1 | In Stock | | TRITAN | 0.94 | 24.73546848 @ 1 |
 | Raptor Supplies | AH7JYN | 26.905788 | 1 | In Stock | | TRITAN | | 26.905788 @ 1 |
 | National Supply Network | 70192109 | 28.18 | 1 | In Stock | | Tritan | | 28.18 @ 1 |
