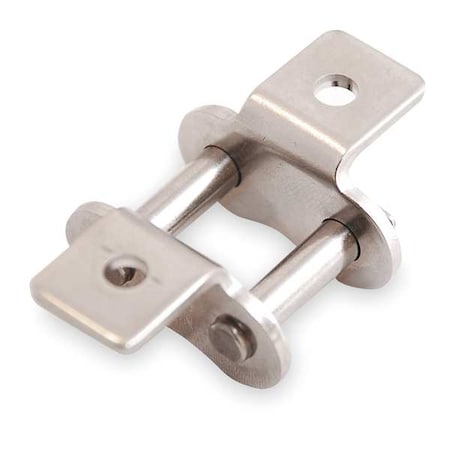

Attachment Link, Attachment Number K-1, Attachment Type Tab, Material Stainless Steel, Chain Overall Width 0.878 in, Chain Number 50, Roller Diameter 25/64 in, Finish Plain, Pitch 5/8 in, Link Type Attachment, Centerline to Attachment End 0.472 in, Centerline to Hole Center 0.406 in, Extended Pin Diameter 0.2 in, Lubrication SAE 10 to SAE 50, Material Grade 600, Maximum Operating Temperature 750 Degrees F, Minimum Operating Temperature -40 Degrees F, Number of Tab Holes 1
Attributes
| Key | Value |
|---|---|
| ANSI Chain Size | 50AS |
| Chain Link Material | 600 Stainless Steel |
| Chain Link Overall Width | 0.878 in |
| Chain Overall Width | 0.878 in |
| Chain Roller Dia. | 0.4 in |
| Extended Pin Diameter | 0.2 in |
| Industry Chain Pitch | 5/8 in |
| Industry Chain Size | 50 |
| Inside Pin Dia. | 0.2 in |
| Length (In.) | 0.625 |
| Outside Pin Dia. | 0.2 in |
| Outside Pin Dia. (In.) | 0.200 |
| Overall Width (In.) | 0.878 |
| Pin Length | 0.878 in |
| Pin Length (In.) | 0.878 |
| Plate Height | 0.591 in |
| Roller Chain Link Item | Attachment Link |
| Roller Chain Link Type | K-1 |
| Roller Dia. (In.) | 0.400 |
| Roller Diameter | 25/64 in |
| Roller Link Plate Height | 0.591 in |
| Roller Link Plate Height (In.) | 0.591 |
| Width Between Roller Link Plates | 0.375 in |
| Width Between Roller Link Plates (In.) | 0.375 |
