TSUBAKI H60B13F-1G

B002E7P1OC

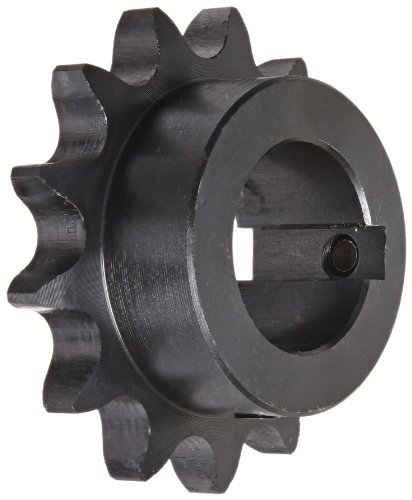

Tsubaki 60B13F-1G Finished Bore Sprocket, Single Strand, Inch, #60 ANSI No., 3/4" Pitch, 13 Teeth, 1-7/16" Bore

Tsubaki 60B13F-1G Finished Bore Sprocket, Single Strand, Inch, #60 ANSI No., 3/4" Pitch, 13 Teeth, 1-7/16" Borezoom

Attributes

Key Value
Bore Dia. (In.)1-7/16
Bore Dia. - Sprockets1 7/16 in
Bore Diameter1 7/16 in
BrandTsubaki
Current Stock1
Hub Dia.2.344 in
Hub Dia. (In.)2-11/32
Hub Diameter2 3/8 in
Industry Chain Size60
International ShippingNo
Keyway Depth3/16 in
Keyway Width3/8 in
Length through Bore1 1/4 in
Length through Bore (In.1-1/4
MaterialHAWA
Maximum Bore Diameter1 7/16 in
Mpn60B13F-1G
Number of Chain RowsSingle
Number of Teeth - Sproc.13
Outside Dia.3.49 in
Outside Dia. (In.)3.490
Outside Diameter3.49 in
Pitch Dia.3.134 in
Pitch Dia. (In.)3.134
Pitch Diameter3.134 in
Set Screw Dia. (In.)3/8
Set Screw Hole Dia.0.375 in
SKUCU-323055473033
SubCategoryPower Transmission
Tooth Width0.459 in
Width Across Tooth SetsNot Applicable

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG719218422.9511Tsubaki1.6722.95 @ 1
thumbzoomsustainablesupply.comC164169339.671In StockTsubaki1.6739.67 @ 1
thumbzoomsimsupply.comCU-32305547303344.991In StockTsubaki44.99 @ 1
thumbzoomRaptor SuppliesAF7BWR55.5322951In StockTSUBAKI55.532295 @ 1
