Description:

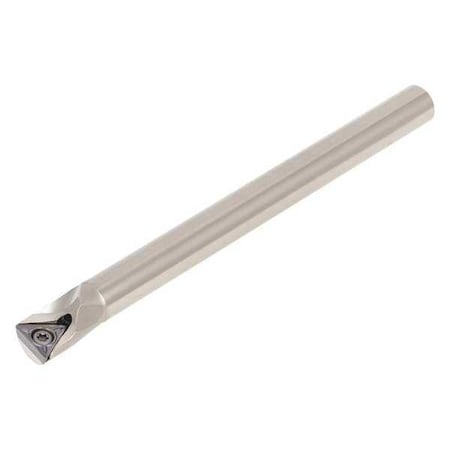

Indexable Boring Bar, A-STUP, Insert Shape Triangle, Overall Length 5 in, A05-STUPR7-D07, 95 Degrees , 1/4 in, CSTB-2.2S Screw, T-7F Wrench, Boring, Right Hand
Attributes
| Key | Value |
|---|---|
| ANSI Code | A05-STUPR7-D07 |
| Cutting Direction | Right Hand |
| Inscribed Circle (In.) | 0.219 |
| Insert Screw | CSTB-2.2S |
| Insert Shape | Triangle |
| Insert Thickness (In.) | 0.094 |
| Item | Indexable Boring Bar |
| Left/Right Hand | Right |
| Lock | Screw Clamp |
| Material | Steel |
| Max. Bore Depth | 5/8 in |
| Min. Bore Dia. | 7/16 in |
| Nose Radius (In.) | 0.01 |
| Number of Inserts Required | 1 |
| Overall Length | 5 in |
| Overall Length (In.) | 5 |
| Shank | Internal Bar |
| Shank Dia. | 5/16 in |
| Shank Dia. (In.) | 0.312 |
| Shank Length | 4-3/8 in |
| Shank Material | High Speed Steel |
| Style | U |
| Torx Wrench | T-7F |
| Type | Indexable |
