- mpnD15P2D
- brandname: U.S. Motors
- manufacturername: U.S. Motors

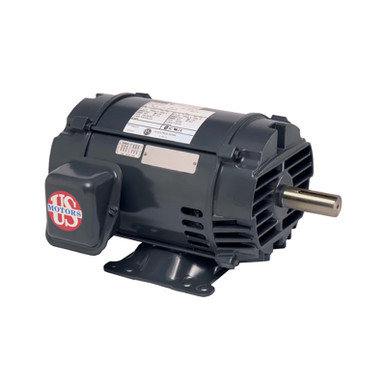

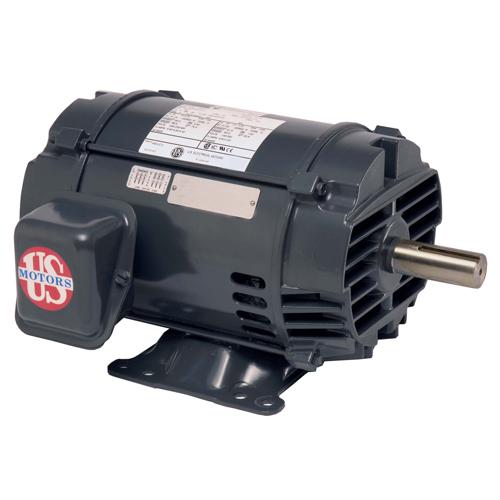

US Motors D15P2D, 15 HP, ODP, 1775 RPM, 3-Phase
- Brand: US Motors
- PartNumber: D15P2D
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: US Motors
- Label: US Motors
Attributes
| Key | Value |
|---|
| Amps | 40-37/18.3 |
| Bearings | Ball |
| Composition | Rolled Steel |
| Construction | Rolled Steel |
| Date First Available | April 6, 2017 |
| Drive End Flange Type | Standard |
| Efficiency | 93% |
| Enclosure | Open Drip Proof, Open |
| Enclosure Type | ODP (Open Dripproof) |
| Estimated Weight | 165.00 |
| Family Series | US Motors Motors |
| FL Amps | 40-36/18.2 |
| FL Efficiency | 93 |
| Frame | 254T |
| Frequency | 60 Hz |
| Full Load Current | 40-37 A, A |
| Gross Weight | 150 lbs |
| Hertz | 50, 60 |
| Horsepower | 15 hp |
| HP | 15 |
| Hz | 50/60 |
| Insulation Class | F |
| Item model number | D15P2D |
| Item Number | D15P2D |
| Kilowatts | 11.2 kW |
| Manufacturer | US Motors (Nidec), US M. |
| Manufacturer Model # | FP86 |
| Manufacturer Part Number | D15P2D |
| Maximum Ambient Tempera. | 40? C |
| Model Number | FP86 |
| Mounting | Foot Mount, Base |
| Mounting Type | Foot Mount |
| NEMA Frame | 254T |
| Net Weight | 0 lbs |
| Nominal Voltage | 208 VAC, 240 VAC, 480 V. |
| Number of Poles | 4 |
| Number of Speeds | 1 |
| Package Quantity | 1 |
| Part Number | D15P2D |
| Phase | 3 |
| Product Type | General Purpose, Three . |
| Product with faster shi. | true |
| Rotation | Reversible |
| RPM | 1775, 1,775 RPM |
| Service Factor | 1.15 |
| Ship Weight | 150 lbs. |
| Shipping | undefined (Fixed Shippi. |
| Speed (RPM) | 1775 |
| Type | General Purpose |
| Voltage | 190V, 230V, 380V, 460V |
| Voltage (AC) | 208-230 VAC, 460 VAC |
| Volts | 208, 230, 460 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | emotorpro.com | D15P2D | 1072.0 | 1 | In Stock | | U.S. Motors | 150.0 | 1072.0 @ 1 |
 | motorsandcontrol.com | D15P2D | 1184.68 | 1 | In Stock | | US Motors (Nidec) | 165.0 | 1184.68 @ 1 |
 | vfds.com | D15P2D | 1204.0 | 1 | In Stock | | US Motors (Nidec) | | 1204.0 @ 1 |
 | National Supply Network | B467698 | 1322.31 | 1 | In Stock | | US MOTORS | | 1322.31 @ 1 |
 | Galco | D15P2D-USM | 1408.97 | 1 | In Stock | | US Motors | 150.0 | 1408.97 @ 1 |
 | homeessentialsdirect.com | D15P2D | 1577.48 | 1 | In Stock | | US Motors | | 1577.48 @ 1 |
 | blackhawksupply.com | D15P2D | 1636.13 | 1 | In Stock | | Us Motor | | 1636.13 @ 1 |
 | Zoro | G008588132 | 1863.99 | 1 | 1 | | U.S. Motors | | 1863.99 @ 1 |
| motionindustries.com | 04433313 | 2131.59 | 1 | In Stock | | US Motors (Nidec) | | 2131.59 @ 1 |
| uri.com | D15P2D | 3019.14 | 1 | In Stock | | U.S. Motors | 150.0 | 3019.14 @ 1 |
