Description:

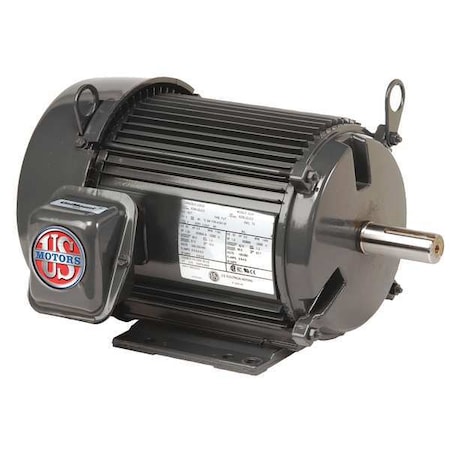

General Purpose Motor, Three Phase, Motor Design 3-Phase, 30 HP, Nameplate RPM 1,800, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 70.0/35.0, 286T Frame, Hz 60/50, Motor Service Factor 1.25, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal or Vertical Shaft Down
Attributes
| Key ^ | Value |
|---|---|
| Frame | 286T |
| HP | 30 |
| Item | General Purpose Motor |
| Length Less Shaft | 23 11/16 in |
| Manufacturers Warranty Length | 2 yr |
| Motor Application | General Application |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Frame Material | Cast Aluminum |
| Motor Mounting Position | Horizontal or Vertical Shaft Down |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nameplate RPM | 1,800 |
| No. of Speeds | 1 |
| Overall Length | 27 5/16 in |
| RPM Range | 1,701-1,800 |
| Shaft Dia. | 1 7/8 in |
| Shaft Length | 4 5/8 in |
| Standards | CE, CSA, UL |
| Voltage | 230/460V AC |
| Voltage Compatibility | 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC |
